Power Lift Gate Motor Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

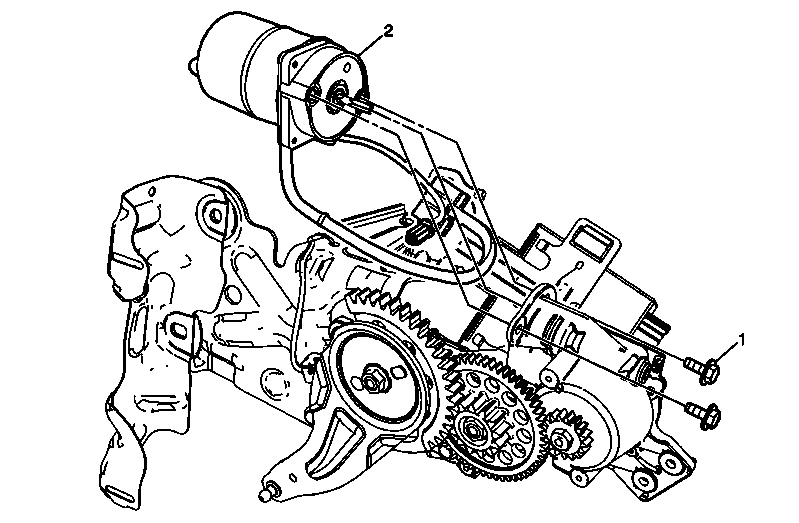

Fig 1: View Of Liftgate Close Actuator Motor & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the body side trim panel. Refer to Trim Panel Replacement - Rear Quarter - Left (Extended Wheelbase w/E61) or Trim Panel Replacement - Rear Quarter - Left (Extended Wheelbase w/o E61) or Trim Panel Replacement - Rear Quarter - Left (Standard Wheelbase w/E61) or Trim Panel Replacement - Rear Quarter - Left (Standard Wheelbase w/o E61) . Remove the liftgate actuator rod. Refer to Lift Gate Actuator Rod Replacement .
1	Power Liftgate Actuator Motor Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Power Liftgate Actuator Motor Tip: Disconnect the electrical connector. Reprogram the power liftgate motor replacement. Refer to Lift Gate Control Module Programming and Setup .

Callout

Component Name

Preliminary Procedures

Remove the body side trim panel. Refer to Trim Panel Replacement - Rear Quarter - Left (Extended Wheelbase w/E61) or Trim Panel Replacement - Rear Quarter - Left (Extended Wheelbase w/o E61) or Trim Panel Replacement - Rear Quarter - Left (Standard Wheelbase w/E61) or Trim Panel Replacement - Rear Quarter - Left (Standard Wheelbase w/o E61) .
Remove the liftgate actuator rod. Refer to Lift Gate Actuator Rod Replacement .

Power Liftgate Actuator Motor Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 8 N.m (71 lb in)

Power Liftgate Actuator Motor
Tip:

Disconnect the electrical connector.
Reprogram the power liftgate motor replacement. Refer to Lift Gate Control Module Programming and Setup .
