Assist Step Finish Cover Replacement (Power)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

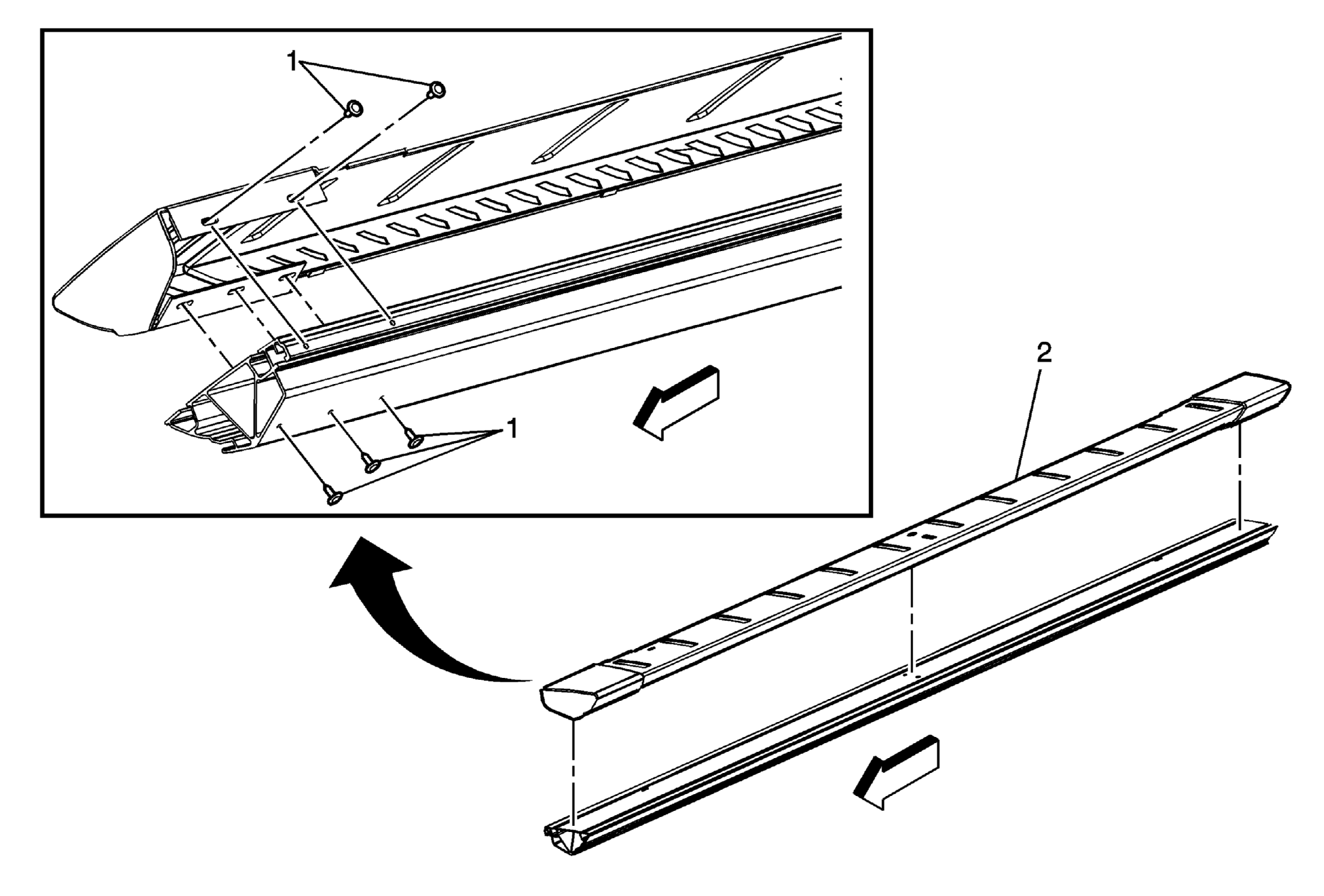

Fig 1: View Of Power Assist Step Finish Cover & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Deploy the power assist step. Remove the power assist step pad. Refer to Assist Step Pad Replacement (Power) .
1	Power Assist Step Finish Cover Screws (Qty: 10) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Power Assist Step Finish Cover

Callout

Component Name

Preliminary Procedures

Deploy the power assist step.
Remove the power assist step pad. Refer to Assist Step Pad Replacement (Power) .

Power Assist Step Finish Cover Screws (Qty: 10)

NOTE: Refer to Fastener Notice .

Tighten: 6 N.m (53 lb in)

Power Assist Step Finish Cover
