Assist Step Pad Replacement (Power)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

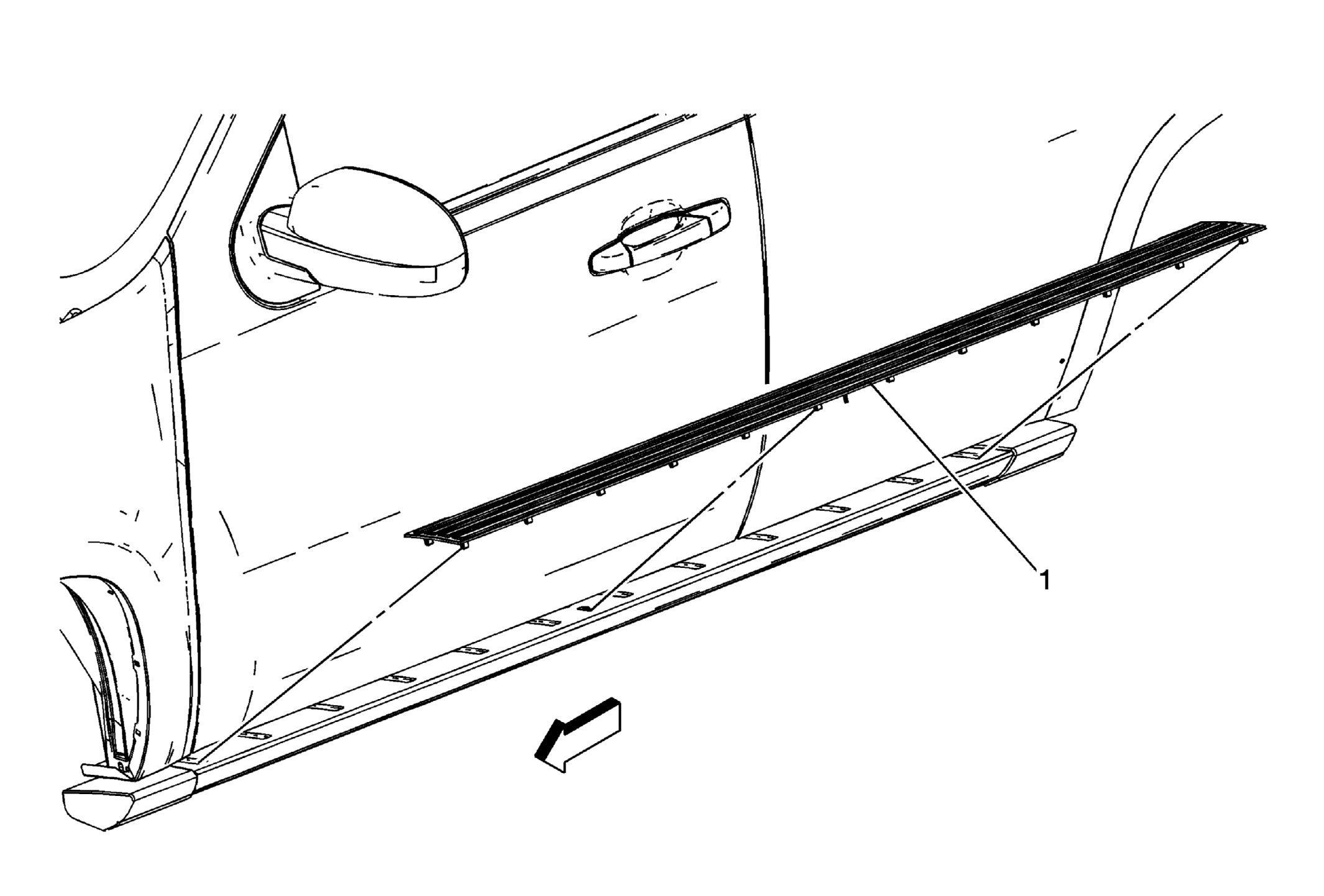

Fig 1: View Of Power Assist Step Pad
GM1809551Courtesy of GENERAL MOTORS CORP.
Assist Step Pad Replacement (Power)

Callout Component Name
1 Power Assist Step Pad

Tips

  1. Deploy the power assist step.
  2. Use a trim panel removal tool to help ease the release of the clips holding the pad in.
