Lift Gate Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

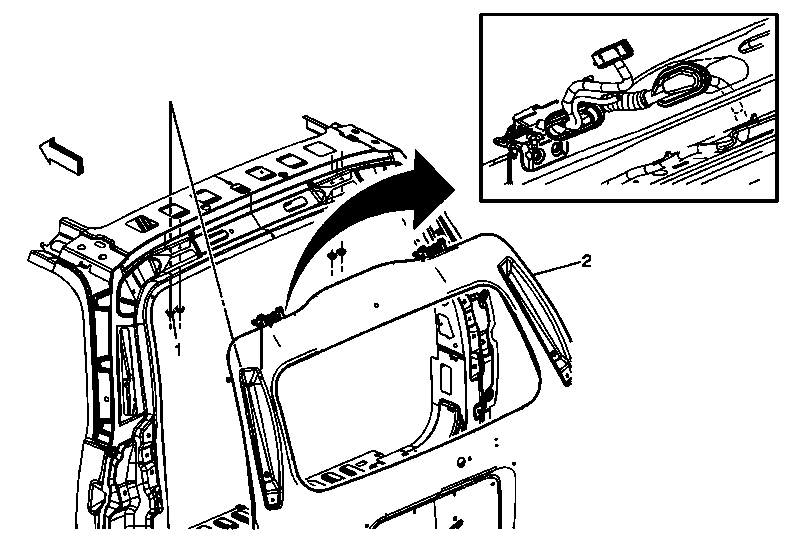

Fig 1: View Of Liftgate Assembly & Body Side Hinge Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the strut rods. Refer to Lift Gate Strut Replacement . Remove the rear door upper garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper . Disconnect the liftgate actuator rod. Refer to Lift Gate Actuator Rod Replacement . Disconnect the electrical connectors.
1	Liftgate Body Side Hinge Nuts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Liftgate Assembly Tip: Calibrate the power liftgate. Refer to Lift Gate Calibration Procedure .

Callout

Component Name

Preliminary Procedures

Disconnect the strut rods. Refer to Lift Gate Strut Replacement .
Remove the rear door upper garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper .
Disconnect the liftgate actuator rod. Refer to Lift Gate Actuator Rod Replacement .
Disconnect the electrical connectors.

Liftgate Body Side Hinge Nuts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Liftgate Assembly
Tip: Calibrate the power liftgate. Refer to Lift Gate Calibration Procedure .
