Front Side Door Window Rear Channel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

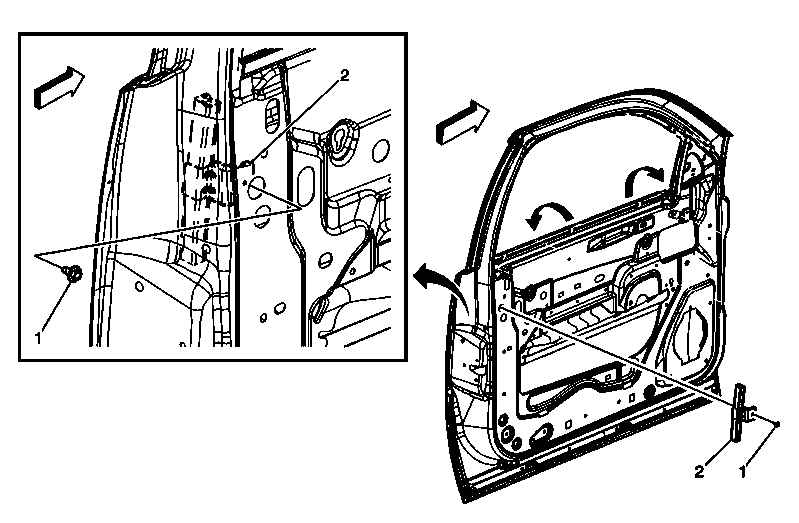

Fig 1: View Of Front Side Door Window Channels & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Position the door window as needed for service. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Door Window Run Channel Rear Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Door Window Rear Run Channel TIP: Raise the door window to the fully close position to gain access the run channel.

Callout

Component Name

Preliminary Procedures

Position the door window as needed for service.
Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Front Door Window Run Channel Rear Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Front Door Window Rear Run Channel
TIP: Raise the door window to the fully close position to gain access the run channel.
