Heater and Air Conditioning Evaporator and Blower Lower Case Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

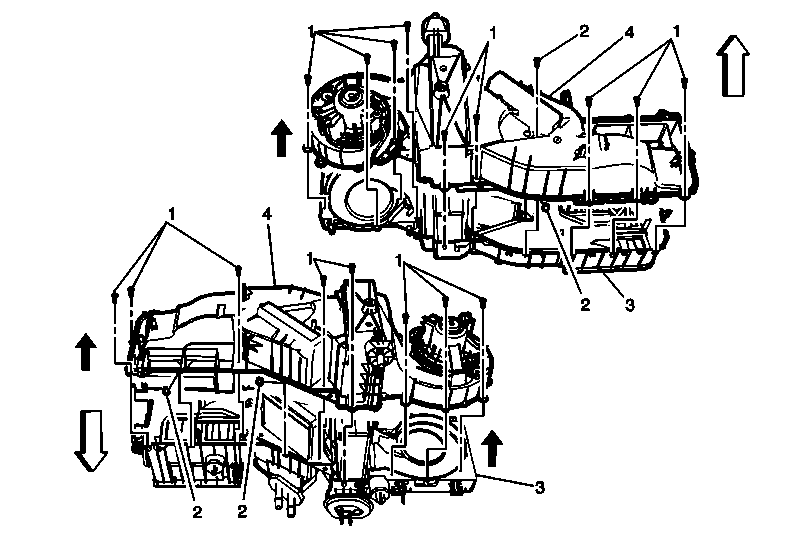

Fig 1: Heater And Air Conditioning Evaporator And Blower Lower Case

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air conditioning and heater module assembly. Refer to Air Conditioning and Heater Module Assembly Removal and Installation (Non-HP2) , Air Conditioning and Heater Module Assembly Removal and Installation (HP2) . Remove the air inlet assembly. Refer to Air Inlet Assembly Replacement . Remove the blower motor control module. Refer to Blower Motor Control Module Replacement .
1	Heater and Air Conditioning Evaporator and Blower Case Screw (Qty: 18) CAUTION: Refer to Fastener Caution .
2	Heater and Air Conditioning Evaporator and Blower Case Clip (Qty: 3)
3	Heater and Air Conditioning Evaporator and Blower Upper Case
4	Heater and Air Conditioning Evaporator and Blower Lower Case Procedure Transfer all the components.
