Auxiliary Blower Motor Replacement (Extended Wheelbase)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

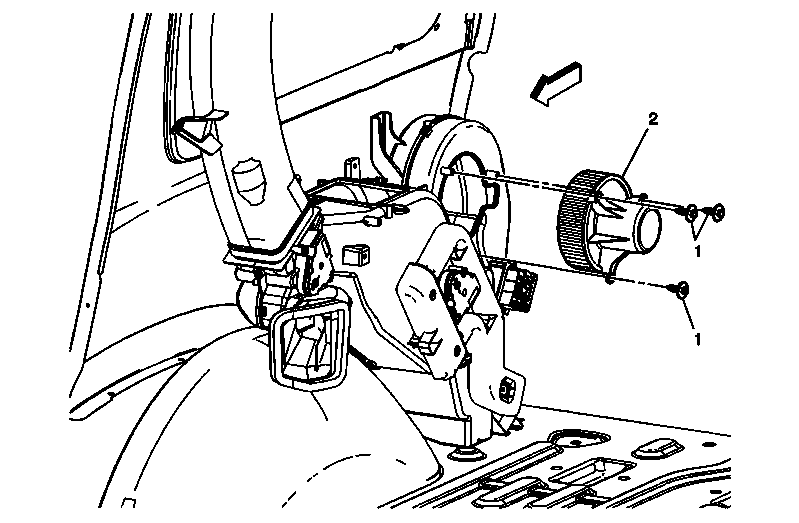

Fig 1: View Of Blower Motor Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Right Side (Extended Wheelbase) , Rear Quarter Trim Panel Replacement - Right Side (Standard Wheelbase) . Disconnect the blower motor electrical connector.
1	Blower Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Blower Motor Assembly

Callout

Component Name

Preliminary Procedure

Remove the right rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Right Side (Extended Wheelbase) , Rear Quarter Trim Panel Replacement - Right Side (Standard Wheelbase) .
Disconnect the blower motor electrical connector.

Blower Motor Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Blower Motor Assembly
