Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Except Cadillac)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Except Cadillac)

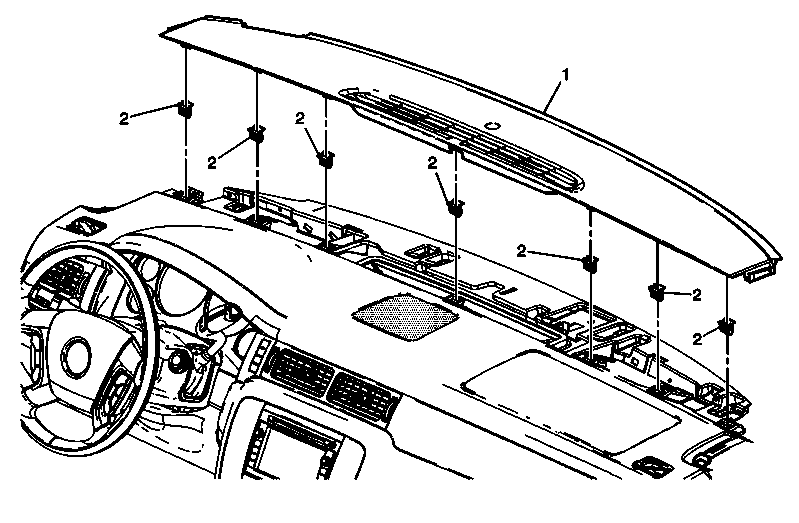

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement . |
|
| 1 | Instrument Panel Upper Trim Panel TIP: Disconnect the electrical connections. |
| 2 | Retainer Clips (Qty: 7) |
