Instrument Panel Driver Knee Bolster Deflector Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

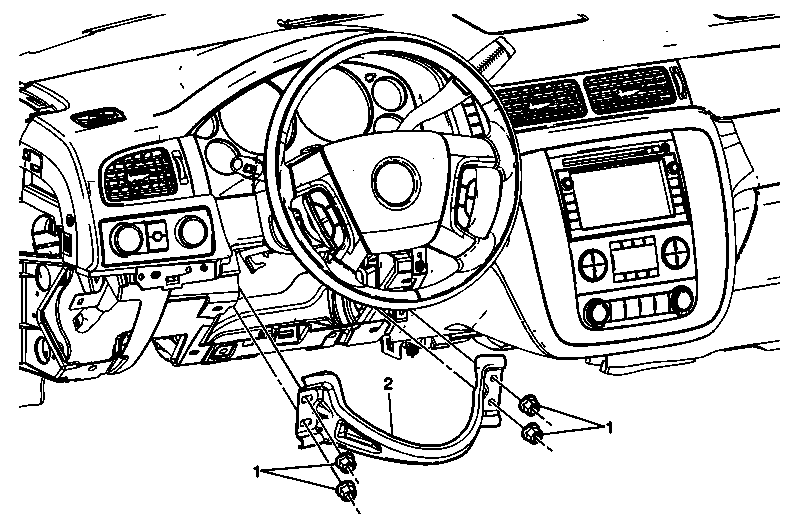

Fig 1: View Of Knee Bolster Deflector & Nuts
GM1682668Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Driver Knee Bolster Deflector Replacement

Callout Component Name
Preliminary Procedure
Remove the knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac) .
1 Knee Bolster Deflector Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Knee Bolster Deflector
