Back Body Opening Garnish Molding Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

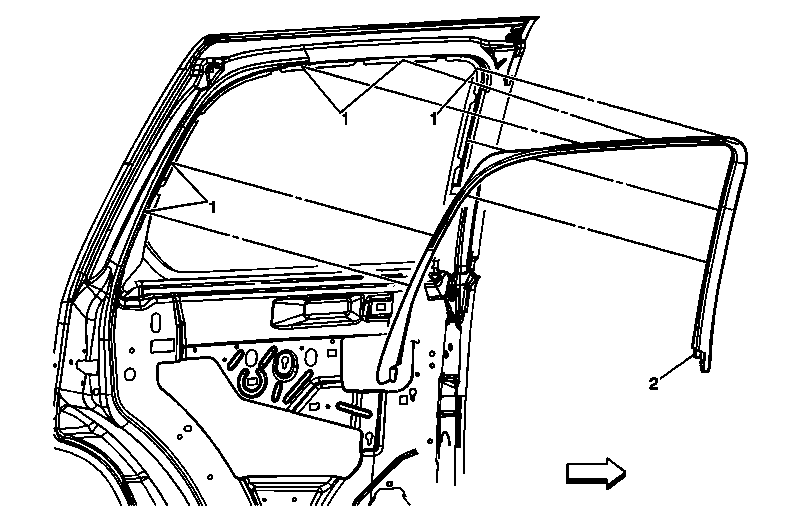

Fig 1: View Of Rear Side Door Window Garnish Molding & Retainers
GM1674926Courtesy of GENERAL MOTORS COMPANY
Back Body Opening Garnish Molding Replacement

Callout Component Name
Preliminary Procedures
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Extended Wheelbase) , Rear Side Door Trim Panel Replacement (Standard Wheelbase) .
1 Rear Side Door Window Garnish Molding Retainer (Qty: 7)
2 Rear Side Door Window Garnish Molding
  1. Install the 2 lower clips to the window flange between the corners.
  2. Install the 2 side clips to the window flange between the corners.
  3. Install the remaining 3 clips around the window flange.
