Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    Observe and mark the positions of all the driveline components, relative to the propeller shaft and the axles, prior to disassembly. These components include the propeller shafts, drive axles, pinion flanges, output shafts, etc. Reassemble all the components in the exact places in which you removed the parts. Follow any specifications, torque values, and any measurements made prior to disassembly.

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
    3. NOTE:

    Step 3 is for those vehicles that are equipped with the 10.5 inch axle.

  3. Remove the rear wheel axle shafts. Refer to Rear Axle Shaft and/or Gasket Replacement .
    4. NOTE:

    Step 4 is for those vehicles that are equipped with the 8.6 or 9.5 inch axle.

  4. Remove the rear brake rotors. Refer to Rear Brake Rotor Replacement (1500 Series) , Rear Brake Rotor Replacement (2500 Series) .
  5. Remove the propeller shaft from the vehicle. Refer to Rear Propeller Shaft Replacement
    6. Fig 1: Measuring Pinion Rotating Torque
    GM661077Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Record this measurement for reassembly.

  6. Using an inch-pound torque wrench, measure the amount of torque required to rotate the pinion.
    7. Fig 2: Pinion Shaft And Pinion Yoke Alignment Marks
    GM788905Courtesy of GENERAL MOTORS CORP.
  7. Place an alignment mark between the pinion and the pinion yoke.
    8. Fig 3: Holding Pinion Yoke With Special Tool
    GM661080Courtesy of GENERAL MOTORS CORP.
  8. Using the J 8614-01  holder/remover and holding it, remove the pinion nut.
  9. Remove the washer.
    10. Fig 4: Holding Pinion Yoke With Special Tool
    GM661074Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Rotate the J 8614-3 clockwise to remove the yoke.

  10. Using the J 8614-2 (2) and the J 8614-3 (3), remove the pinion yoke.

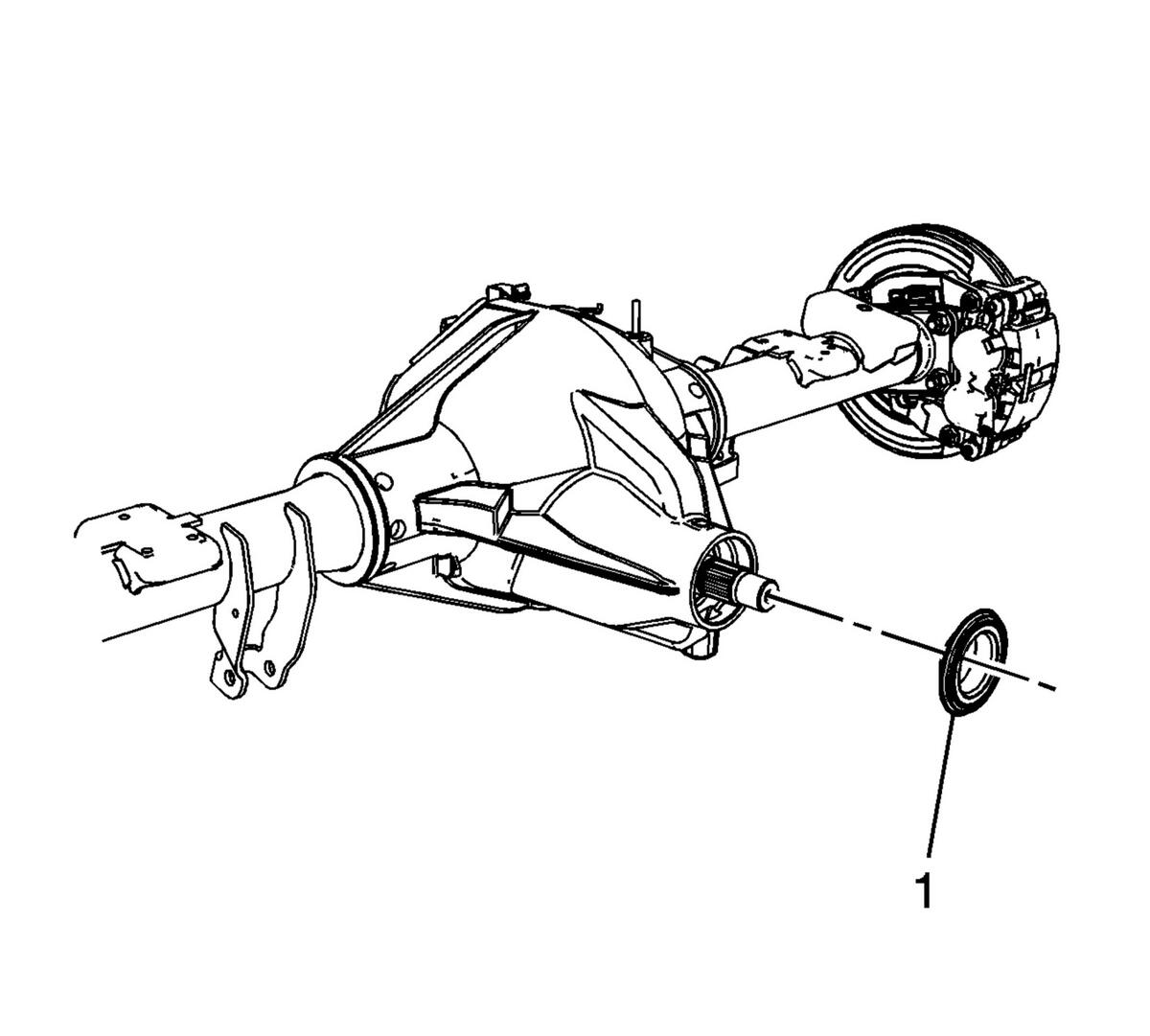

    11. Fig 5: Drive Pinion Seal
    GM1961124Courtesy of GENERAL MOTORS CORP.
  11. Using a suitable tool, remove the drive pinion seal (1).
