Assist Step Rear Bracket Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

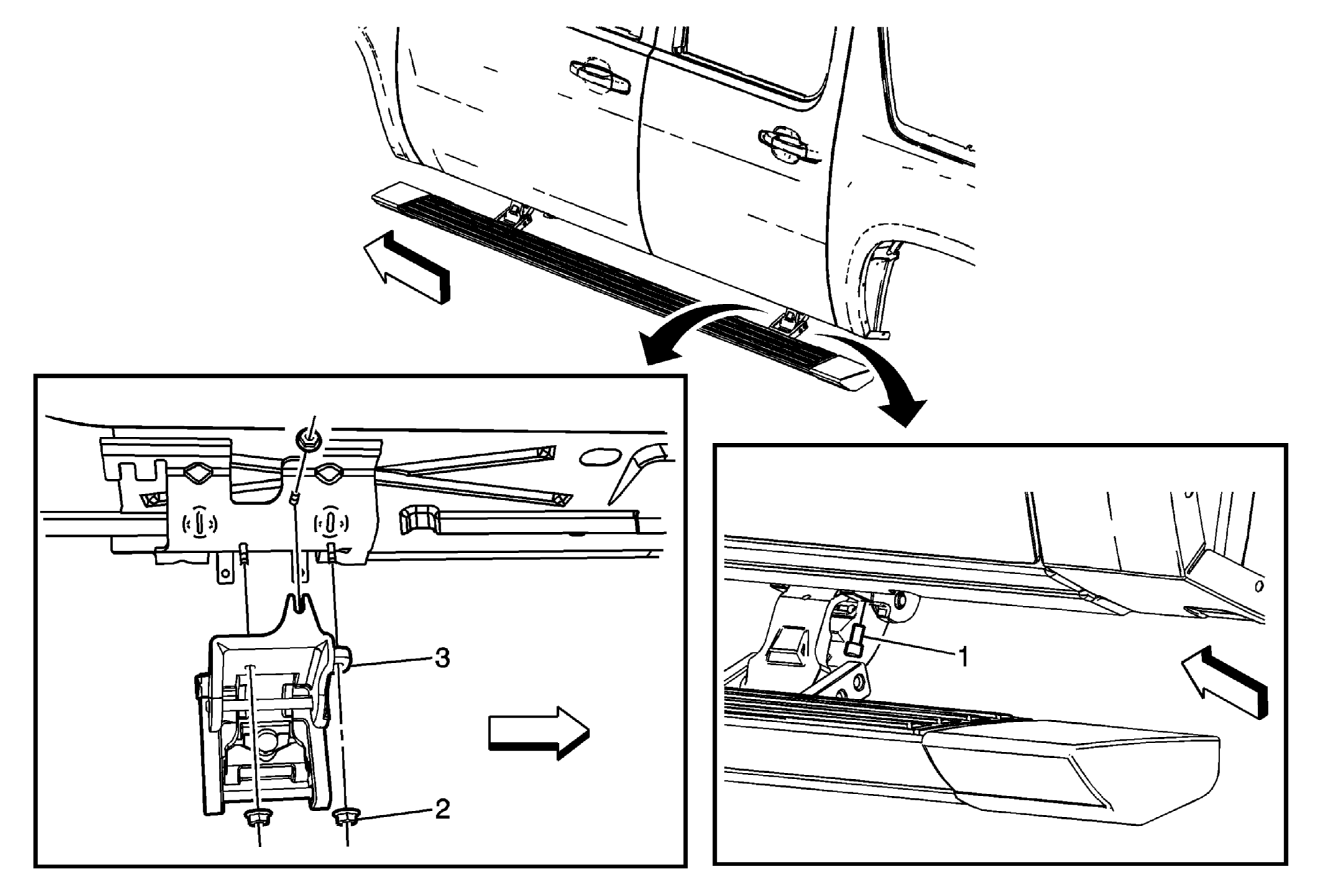

Fig 1: Assist Step Rear Bracket, Rear Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Deploy and support the power assist step. Use a grease pencil to outline the location of the power assist step rear bracket location on the power assist step. Remove the power assist rear bracket to power assist step bolts. Refer to Assist Step Replacement (GMC Denali XL) , Assist Step Replacement (Chevrolet HP2) , Assist Step Replacement (Power BRS) , Assist Step Replacement (Z71)
1	Power Assist Step Rear Bracket Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Power Assist Step Rear Bracket Nuts (Qty: 3) Tighten 10 N.m (89 lb in)
3	Power Assist Step Rear Bracket
