Midgate Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Midgate Replacement

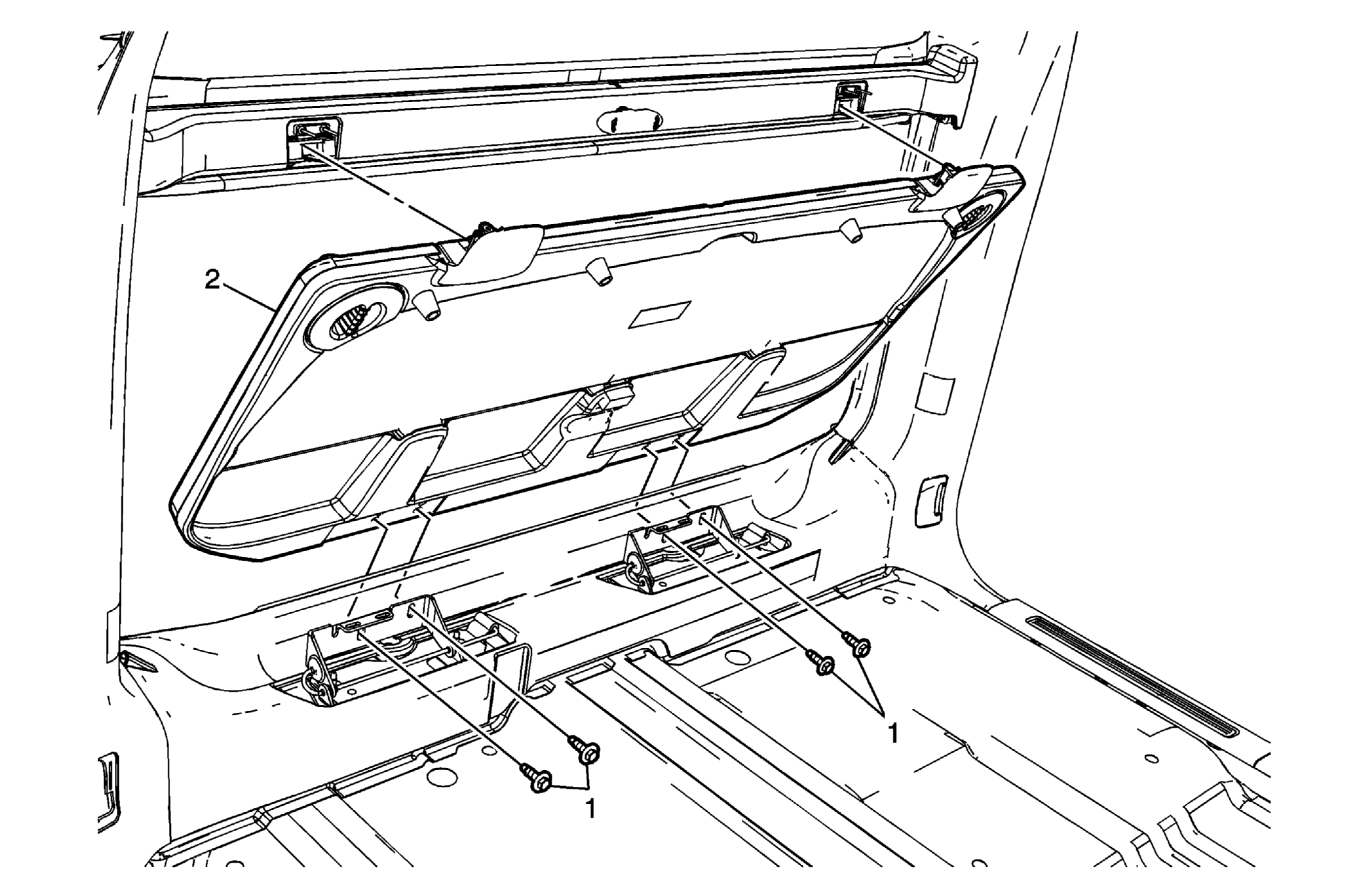

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the midgate hinge finish covers. Refer to Removable Midgate Hinge Finish Cover Replacement (SUT) . |
|
| 1 | Midgate Hinge Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Midgate Assembly |
