Front Fender Replacement - Right Side (Hybrid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

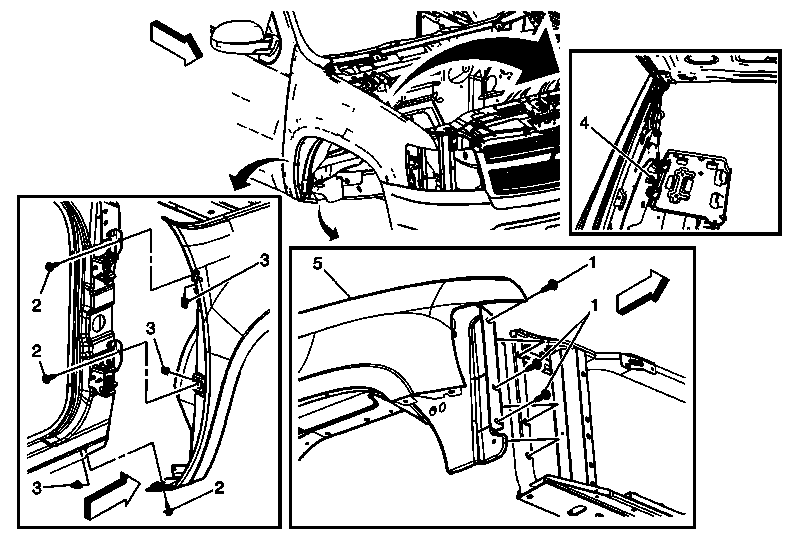

Fig 1: Front Fender - Right Side (Hybrid)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp. Refer to Headlamp Replacement (Cadillac Escalade) , Headlamp Replacement (Tahoe, Avalanche) , Headlamp Replacement (Chevrolet Tahoe Two-mode Hybrid) , Headlamp Replacement (Escalade PLATINUM) , Headlamp Replacement (Non HID) , Headlamp Replacement (Yukon) , Headlamp Replacement (GMC Yukon Two-mode Hybrid) . Remove the upper rear fender bracket. Refer to Front Fender Rear Upper Bracket Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner bracket. Refer to Air Cleaner Bracket Replacement . Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling system. Refer to Radiator Surge Tank Replacement (Non-HP2) , Radiator Surge Tank Replacement (HP2) . Remove the battery tray. Refer to Battery Tray Replacement . Remove the right hood hinge. Refer to Hood Hinge Replacement . Remove the right hood open assist spring. Refer to Hood Open Assist Spring Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side .
1	Fender Mounting Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Fender Mounting Bolt (Qty: 3) Procedure Apply threadlock compound to the bolts. Tighten 30 N.m (22 lb ft)
3	Fender Mounting Clip (Qty: 3)
4	Fender Nut (Qty: 2) Procedure Two nuts are required on stud for correct application. Tighten 25 N.m (18 lb ft)
5	Fender TIP: Transfer parts as needed.
