Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential carrier assembly in a vise.
    2. Fig 1: Front Axle Actuator (S4WD)
    GM1866174Courtesy of GENERAL MOTORS CORP.
  2. Remove the front axle actuator, S4WD axle only.

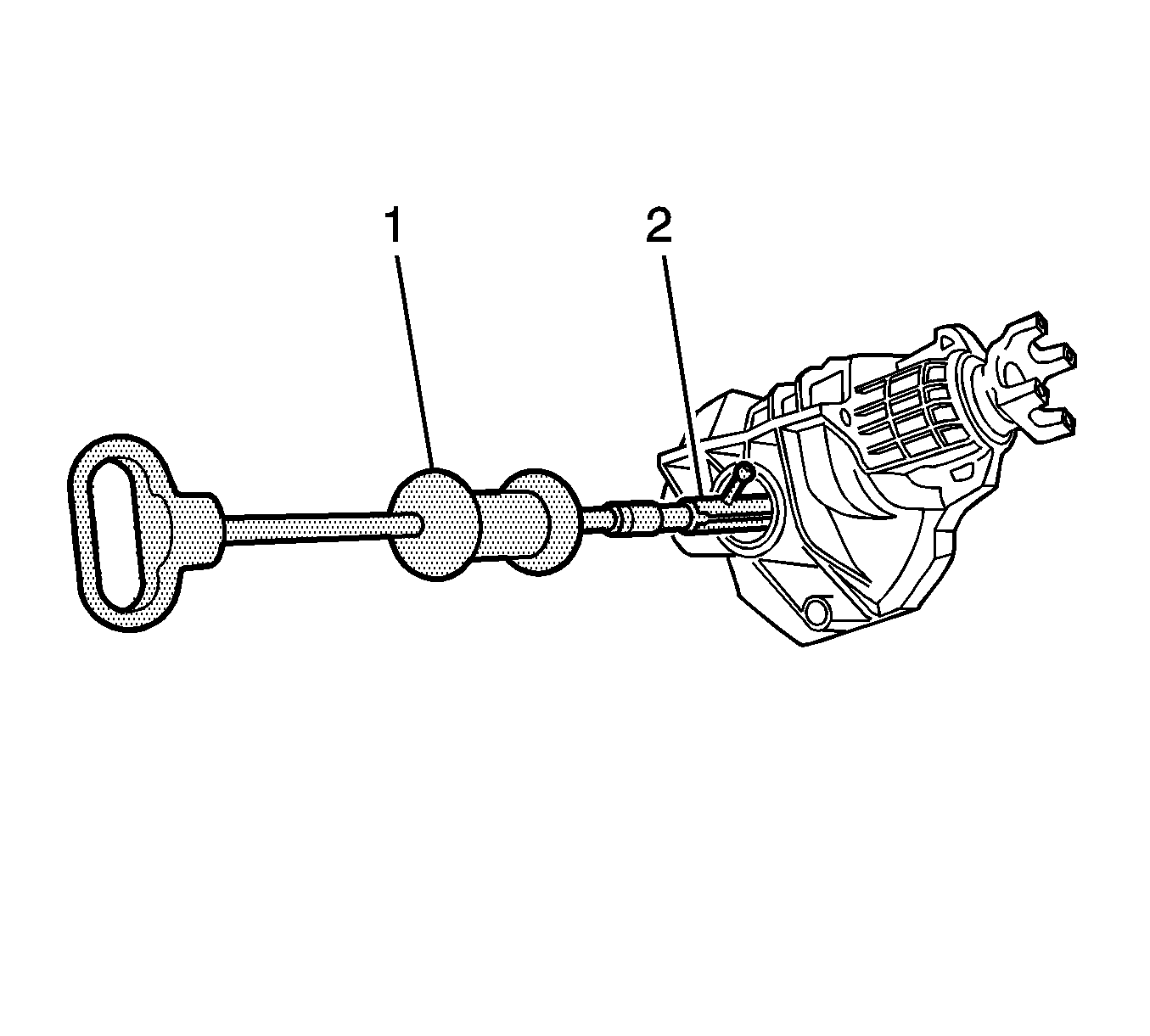

    3. Fig 2: Removing Left Side Inner Axle Shaft Bearing And Inner Axle Shaft Seal
    GM1865771Courtesy of GENERAL MOTORS CORP.
  3. Remove the left side inner axle shaft bearing and the inner axle shaft seal by performing the following steps:
    1. Install the J 29369-1  (1) behind the inner axle shaft bearing. See Special Tools .
    2. Install the J 2619-01  (2) to the J 29369-1  (1). See Special Tools .
    3. Using the J 2619-01  remove the inner axle shaft bearing and the seal.
  4. Disconnect the right side inner axle shaft from the differential side gear using a hammer and a brass drift, F4WD axle only.
  5. Remove the inner axle shaft, F4WD axle only.
  6. Remove the inner axle shaft housing to differential carrier assembly bolts.
  7. Remove the inner axle shaft housing, F4WD axle only.
    8. Fig 3: View Of Inner Axle Shaft Housing Assembly To Differential Carrier Assembly
    GM893259Courtesy of GENERAL MOTORS CORP.
  8. Carefully remove the inner axle shaft housing with the inner axle shaft and clutch fork components from the differential carrier assembly, S4WD axle only.
    9. Fig 4: Inner Axle Housing To Differential Carrier Gasket
    GM1891514Courtesy of GENERAL MOTORS CORP.
  9. Remove the inner axle housing to differential carrier gasket
    10. Fig 5: Inner Axle Shaft Housing Components (8.25 Inch)
    GM892810Courtesy of GENERAL MOTORS CORP.
  10. Remove the following components from the inner axle shaft housing, S4WD axle only:
    1. The clutch fork inner spring (10)
    2. The clutch fork assembly (11)
    3. The clutch shaft shim (9)
    4. The clutch shaft sleeve (8)
    5. The front drive axle clutch gear (6) by doing the following:
      1. Clamp the inner axle shaft housing (4) in a vise.

        Clamp only on the mounting flange.

      2. Strike the inside surface of the shaft (1) flange with a hammer and a brass drift in order to dislodge the front drive axle clutch gear (6) from the inner axle shaft (1).
    6. Remove the front drive axle clutch gear (6)
    7. Remove the thrust washer (5)
    8. Remove the inner axle shaft (1)
    11. Fig 6: Removing Inner Axle Shaft Seal And/Or Inner Axle Shaft Bearing Usingj 29369-2 & J 2619-01
    GM834245Courtesy of GENERAL MOTORS CORP.
  11. Remove the right side inner axle shaft bearing and the inner axle shaft seal by performing the following steps:
    1. Place the differential carrier assembly into a vise.

      Clamp only on the mounting flange of the differential carrier assembly case.

    2. Install the J 29369-1  (1) behind the inner axle shaft bearing. See Special Tools .
    3. Install the J 2619-01  (2) to the J 29369-1  (1). See Special Tools .
    4. Using the J 2619-01  (2), remove the inner axle shaft bearing and the inner axle shaft seal.
  12. Remove the differential carrier assembly from the vise.
  13. Remove the front drive axle clutch shaft (S4WD only).
    14. Fig 7: Identifying Clutch Shaft Pilot Bearing - Front Drive Axle
    GM680254Courtesy of GENERAL MOTORS CORP.
  14. Using the J 34011  , remove the clutch shaft bearing (S4WD only). See Special Tools .
    15. Fig 8: View Of Vent Connector
    GM1904008Courtesy of GENERAL MOTORS CORP.
  15. Remove the vent connector.

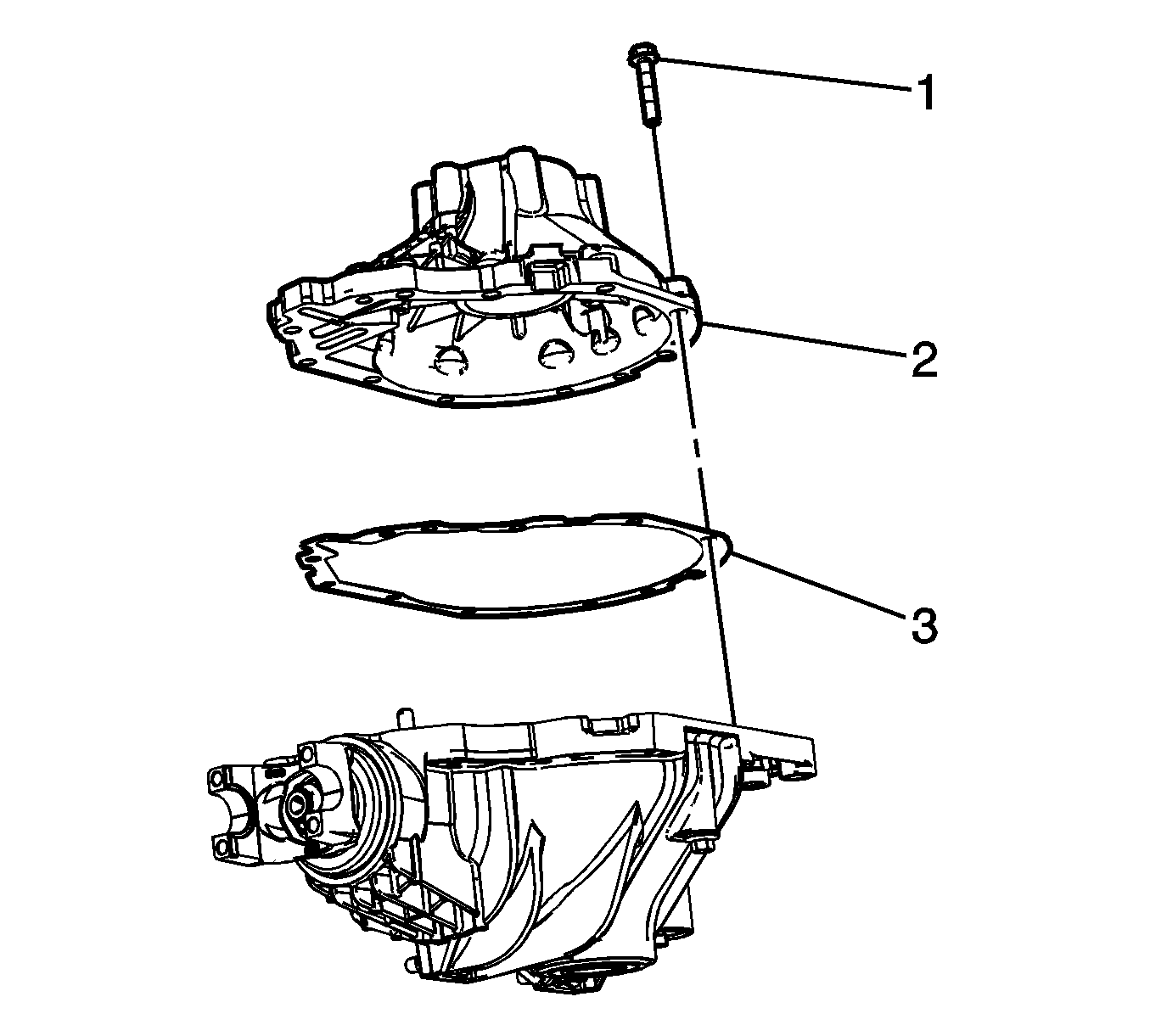

    16. Fig 9: View Of Differential Carrier Housing, Gasket & Bolts
    GM1865718Courtesy of GENERAL MOTORS CORP.
  16. Remove the differential carrier assembly bolts (1).
  17. Separate the left carrier case half from the right carrier case half (2) by tapping on the on the carrier case with a hammer and a brass drift.
  18. Remove the differential carrier housing (2) and the differential carrier housing gasket (3).
  19. Remove the differential case assembly.
    20. Fig 10: View Of Differential Bearing Adjuster Nut Lock
    GM1891516Courtesy of GENERAL MOTORS CORP.
  20. Using a suitable remover, remove the differential bearing adjuster nut locks.

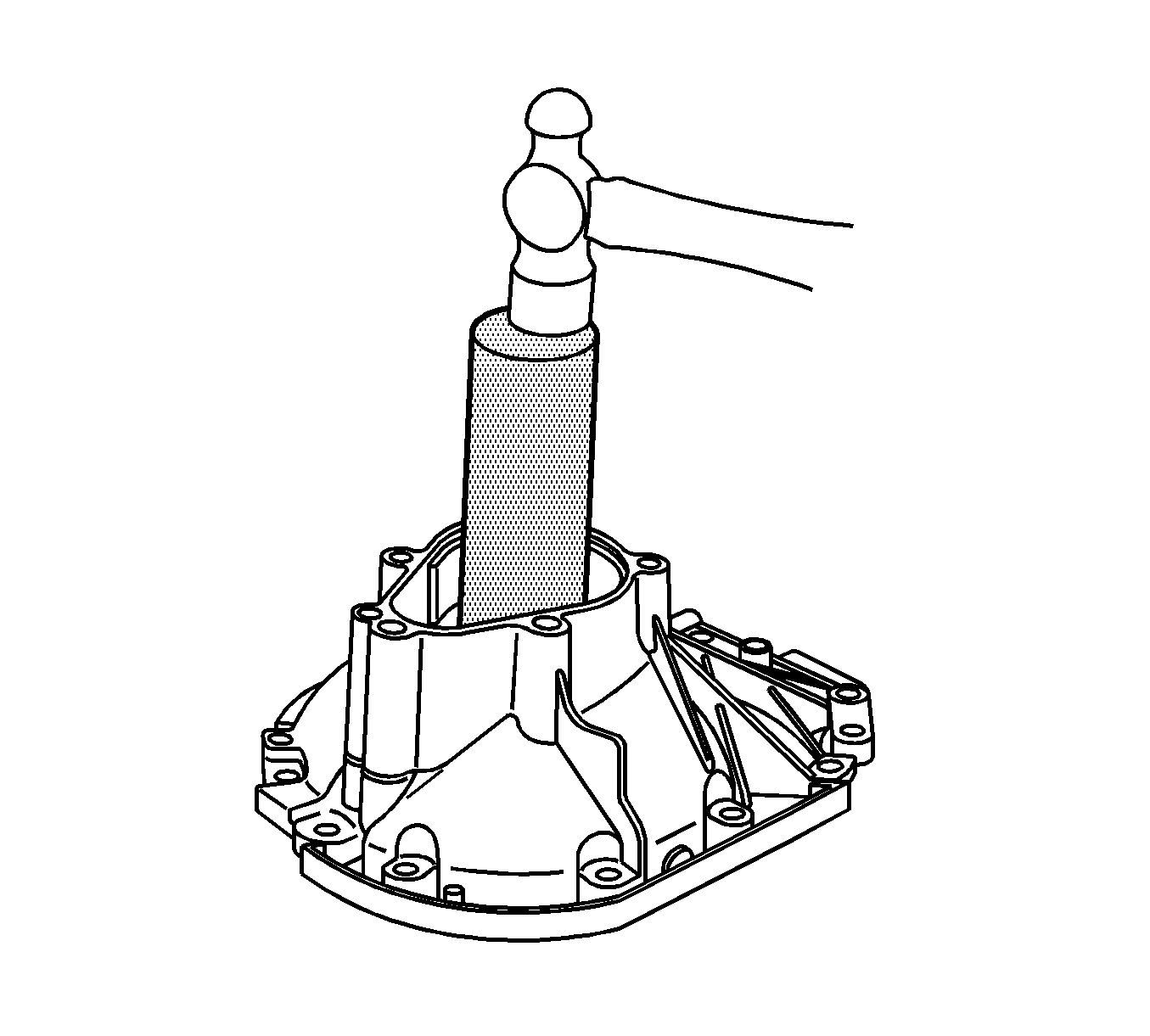

    21. Fig 11: View Of J 36614
    GM1891193Courtesy of GENERAL MOTORS CORP.
  21. Using the J 36614  , remove the differential bearing adjuster nuts and the differential bearing cups.

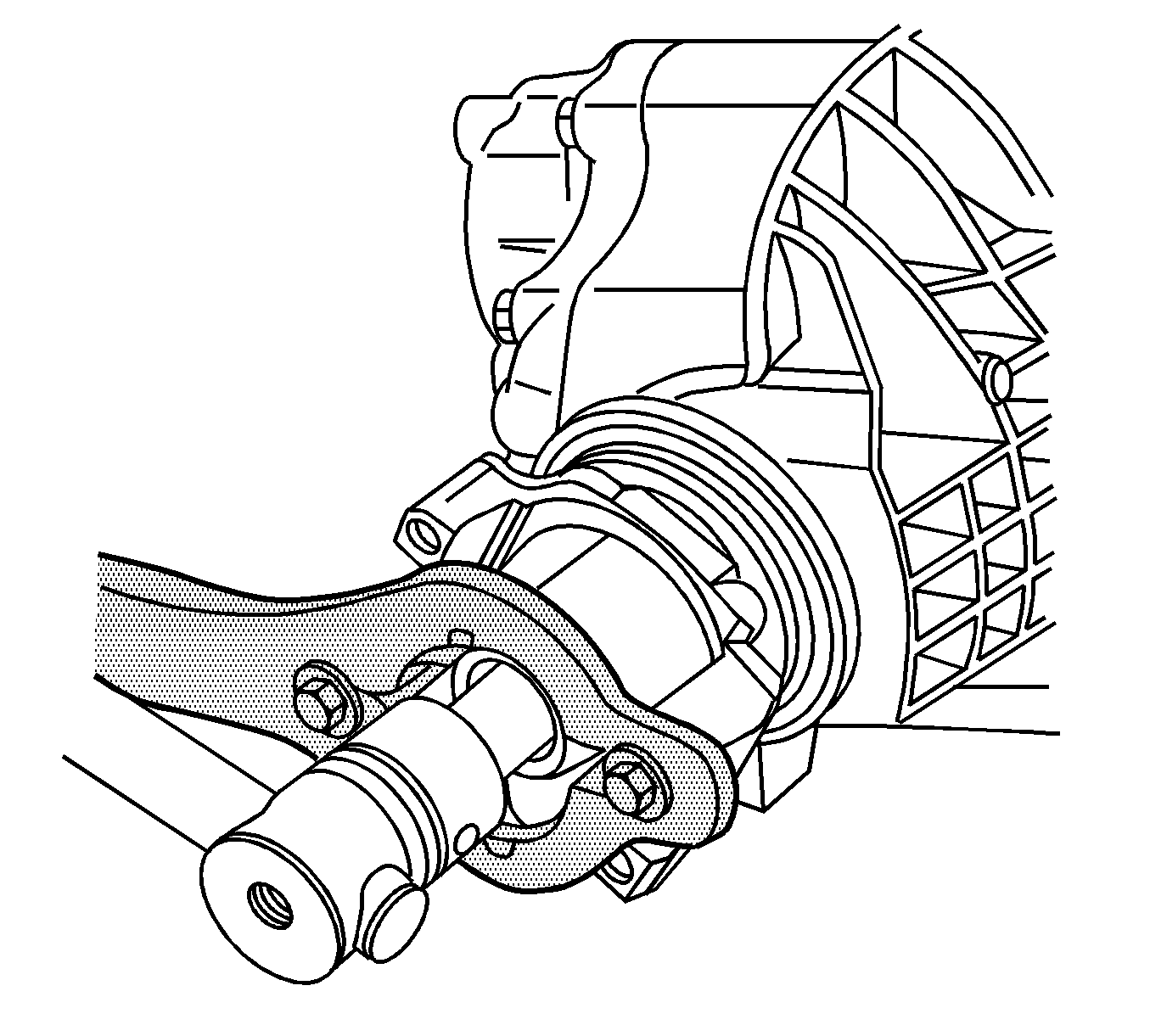

    22. Fig 12: View Of J 8614-01
    GM1865961Courtesy of GENERAL MOTORS CORP.
  22. Install the J 8614-01  as shown. See Special Tools .

    Remove the pinion nut while holding the J 8614-01  . See Special Tools .

  23. Remove the washer.

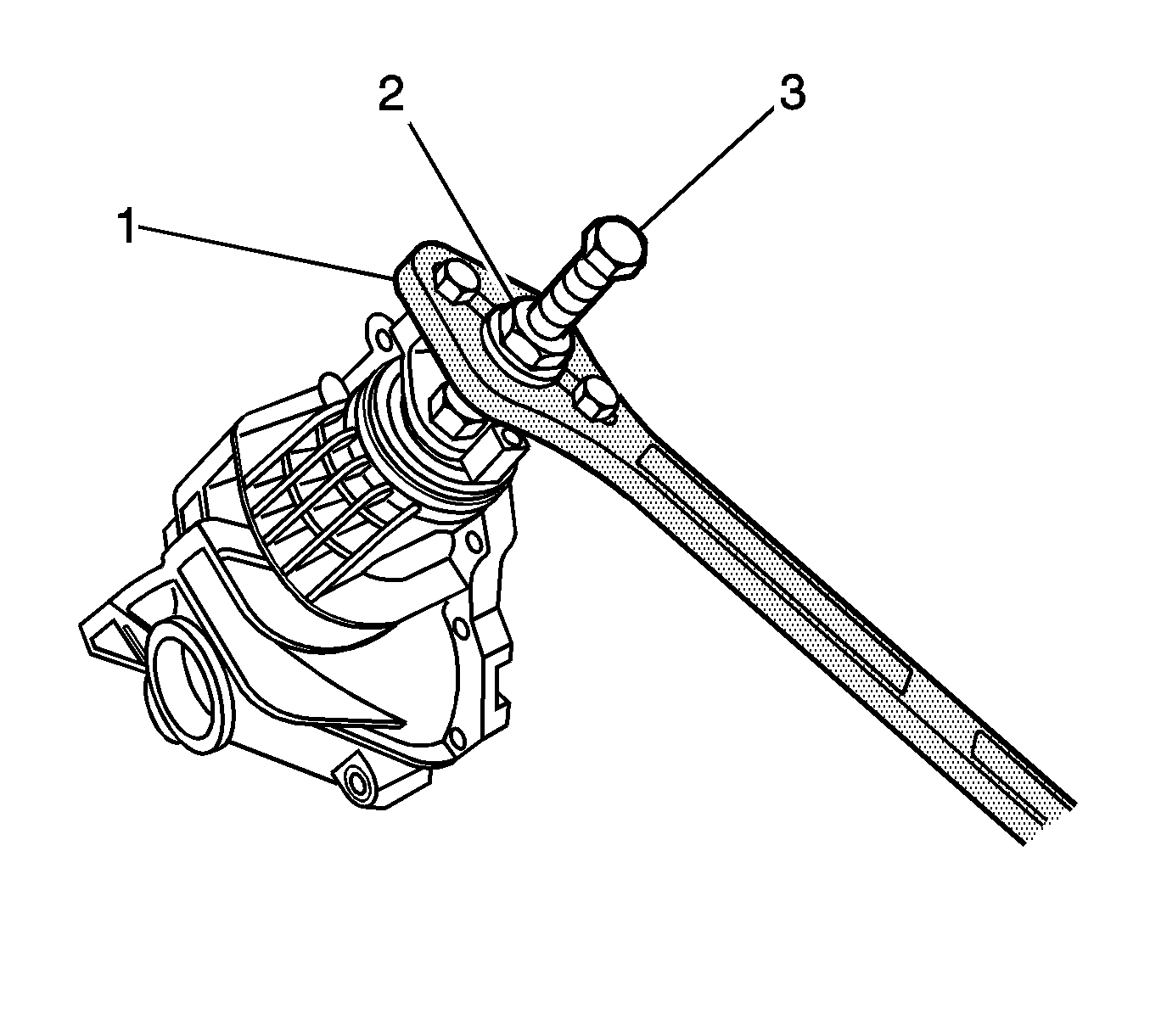

    24. Fig 13: View Of Pinion Yoke Removal Tools
    GM1865770Courtesy of GENERAL MOTORS CORP.
  24. Install the J 8614-2 (2) and the J 8614-3 (3) into the J 8614-01  (1) as shown. See Special Tools .
  25. Remove the pinion yoke by turning the J 8614-3 (3) clockwise while holding the J 8614-01  (1). See Special Tools .
  26. The steps below explain how to remove the drive pinion and pinion bearing cups using the J 36598  or the J 45765  and the J-45858  . See Special Tools . Follow the appropriate steps depending on what tool is available.
  27. Install the J 36598  into a vise. See Special Tools .
    28. Fig 14: Removing Pinion (8.25 Inch Axles)
    GM680106Courtesy of GENERAL MOTORS CORP.
  28. Install the left differential carrier case half onto the J 36598  and the J 36598 - (only 3 of the 4 mounting bolts will be used). See Special Tools .
  29. While holding the forcing screw of the J 36598  , turn the handle of the J 36598  counterclockwise in order to remove the pinion with the following components:. See Special Tools .
    • The pinion gear selectable shim
    • The inner pinion bearing
    • The collapsible spacer
    30. Fig 15: Pressing Inner Bearing Cup Out From Differential Carrier Case Using J 36598 Forcing Screw, J 36598 Handle & J 36598-5 (8.25 Inch Axles)
    GM890234Courtesy of GENERAL MOTORS CORP.
  30. Install the J 36598-5 (3) behind the inner pinion bearing cup.
  31. Thread the forcing screw of the J 36598  (1) onto the J 36598-5 (3) until fully seated. See Special Tools .
  32. While holding the forcing screw of the J 36598  (1), turn the handle of the J 36598  (2) counterclockwise and press the inner bearing cup out from the differential carrier case. See Special Tools .
    33. Fig 16: Removing Pinion Oil Seal & Bearing Using Forcing Screw J 36598 To J 36598-5 (8.25 Inch Axles)
    GM680114Courtesy of GENERAL MOTORS CORP.
  33. Install the J 36598-5 (2) behind the outer pinion bearing cup.
  34. Install the forcing screw of the J 36598  (1) to the J 36598-5 (2). See Special Tools .
  35. While holding the forcing screw of the J 36598  , turn the handle of the J 36598  clockwise in order to remove the following components:. See Special Tools .
    • The pinion oil seal
    • The pinion outer bearing
    • The pinion outer bearing cup
    36. Fig 17: Removing Pinion Components Using J 45765 (8.25 Inch Axles)
    GM1486597Courtesy of GENERAL MOTORS CORP.
  36. Install the J 45765  to the left side differential carrier case half over the drive pinion as shown. See Special Tools .
  37. Turn the forcing screw of the J 45765  clockwise to remove the following components from the left side differential carrier case half:. See Special Tools .
    • The drive pinion gear
    • The pinion gear selectable shim
    • The inner pinion bearing
    • The collapsible spacer
  38. Remove the drive pinion seal using a suitable seal remover.
  39. Remove the outer pinion bearing from the differential carrier case half.
    40. Fig 18: Installing J 45858-4 Over Inner Pinion Bearing Cup (8.25 Inch Axles)
    GM1486598Courtesy of GENERAL MOTORS CORP.
  40. Install the J 45858-4 over the inner pinion bearing cup.
    41. Fig 19: Installing Forcing Screw Of J 45858 Into J 45858-4 (8.25 Inch Axles)
    GM1486602Courtesy of GENERAL MOTORS CORP.
  41. Install the forcing screw (1) of the J-45858  into the J 45858-4 (2). See Special Tools .
  42. Drive out the inner pinion bearing cup by pounding on the forcing screw with a hammer.

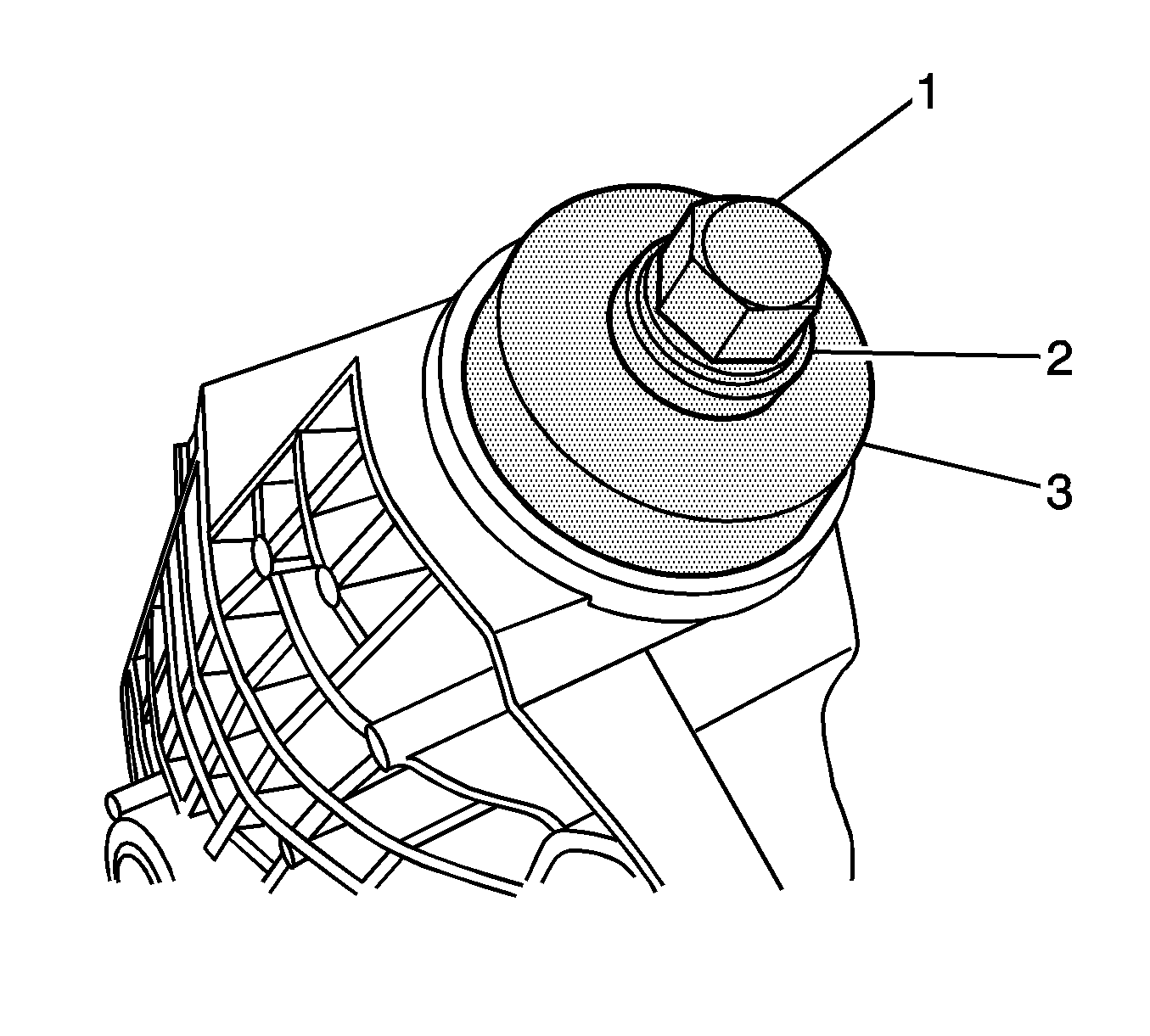

    43. Fig 20: View Of Thrust Bearing & Washer, Forcing Screw & Special Tool J 45858-3
    GM1865763Courtesy of GENERAL MOTORS CORP.
  43. Install the J 45858-3 (3), the thrust bearing and the washer (2), and the forcing screw (1) over the outer pinion bearing cup bore.
    44. Fig 21: Installing J 45858-5 Into Pinion Bearing Bore (8.25 Inch Axles)
    GM1486591Courtesy of GENERAL MOTORS CORP.
  44. Install the J 45858-5 into the pinion bearing bore behind the outer pinion bearing cup.

    Slowly turn the forcing screw clockwise until the J 45858-5 is evenly seated behind the outer pinion bearing cup bore and the J 45858-3 is evenly seated over the outer pinion bearing cup bore.

  45. Remove the outer pinion bearing cup by turning the forcing screw clockwise.
  46. Remove the collapsible spacer from the drive pinion.
    47. Fig 22: Removing Inner Pinion Bearing Using Hydraulic Press
    GM680110Courtesy of GENERAL MOTORS CORP.
  47. Install the J 22912-B  between the pinion bearing and the drive pinion. See Special Tools .
  48. Using the J 22912-B  and a hydraulic press, remove the inner pinion bearing. See Special Tools .
  49. Remove the pinion gear selectable shim.
