Ambient Air Temperature Sensor Replacement (DF5)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

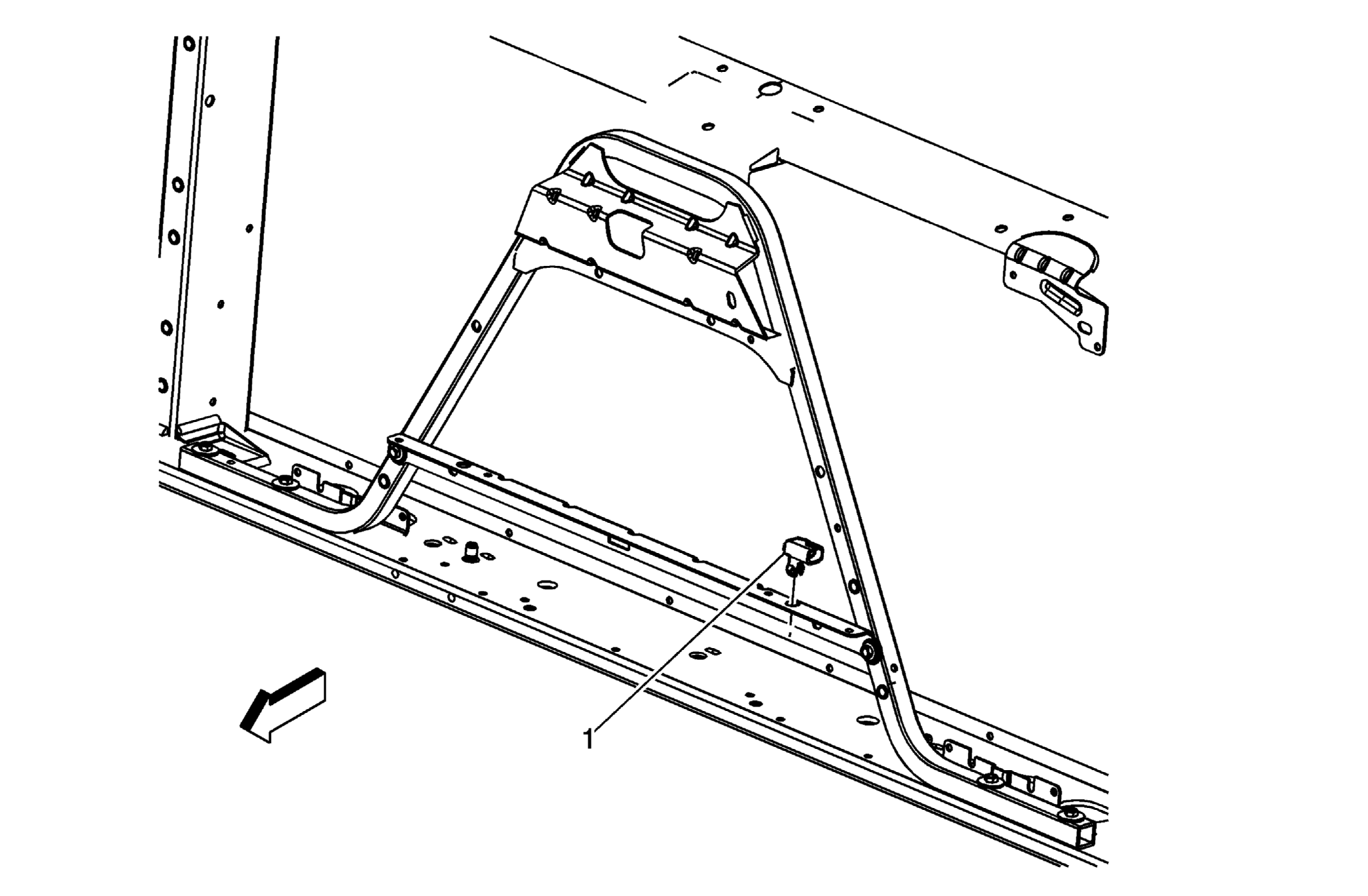

Fig 1: Locating Ambient Air Temperature Sensor (DF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the top portion of the grille and gently pull forward. Refer to Fascia Grille Replacement (Z71) or Fascia Grille Replacement (Suburban, Tahoe) or Fascia Grille Replacement (Escalade) or Fascia Grille Replacement (Yukon) or Fascia Grille Replacement (GMC Yukon Two-mode Hybrid) .
1	Ambient Air Temperature Sensor Tip: Disconnect the electrical connector. Snap the new sensor into the steel support gently or the new sensor could break.
