Front Bumper Impact Bar Extension Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

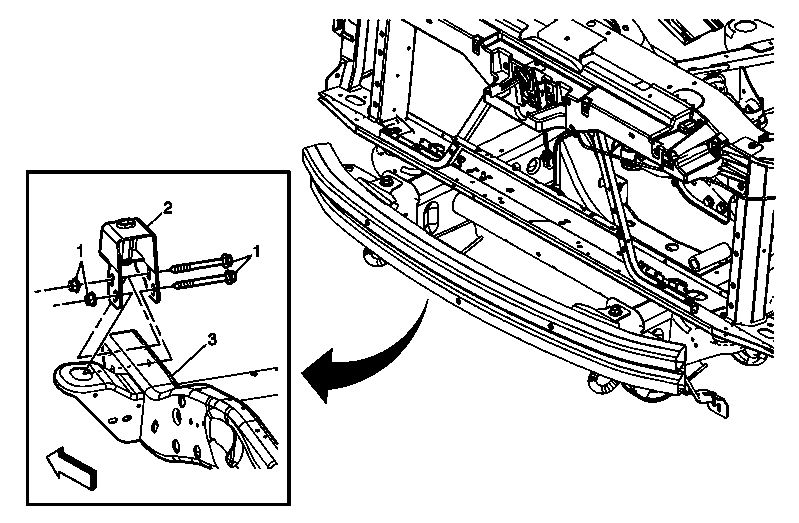

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement . |
|
| 1 | Front Impact Bar Extension (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 160 N.m (118 lb ft) |
| 2 | Front Impact Bar Extension |
| 3 | Frame Rail Front |
