Body Side Rear Drain Duct Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

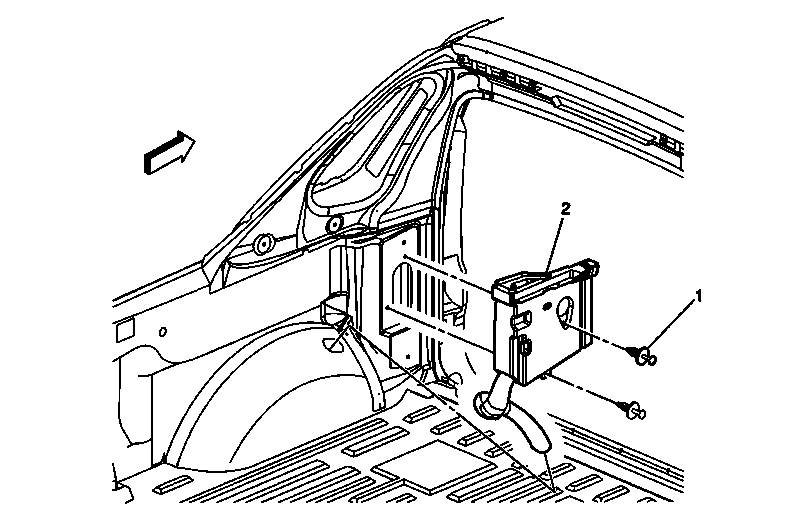

Fig 1: View Of Rear Quarter Body Side Drains & Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the cargo box cover assembly. Refer to Cargo Box Front Cover, Center Cover, and Rear Cover Replacement . Remove the cargo box stowage lid assembly. Refer to Cargo Box Stowage Box Lid Replacement . Remove the cargo box stowage box. Refer to Cargo Box Stowage Box Replacement .
1	Rear Quarter Body Side Drain Retainers (Qty: 2)
2	Rear Quarter Body Side Drain

Callout

Component Name

Preliminary Procedure

Remove the cargo box cover assembly. Refer to Cargo Box Front Cover, Center Cover, and Rear Cover Replacement .
Remove the cargo box stowage lid assembly. Refer to Cargo Box Stowage Box Lid Replacement .
Remove the cargo box stowage box. Refer to Cargo Box Stowage Box Replacement .

Rear Quarter Body Side Drain Retainers (Qty: 2)

Rear Quarter Body Side Drain
