Timing Chain and Sprockets Installation

Tools Required

• EN 46330  Timing Belt Tensioner Retaining Pin. See Special Tools .
• J 41478  Crankshaft Front Oil Seal Installer. See Special Tools .
• J 41665  Crankshaft Balancer and Sprocket Installer. See Special Tools .
• J 42386-A  Flywheel Holding Tool. See Special Tools .
• J 45059  Angle Meter. See Special Tools .

Fig 1: View Of Crankshaft Key & Keyway
Courtesy of GENERAL MOTORS CORP.
1. Install the key into the crankshaft keyway, if previously removed.
Fig 2: View Of Installed Crankshaft Key
Courtesy of GENERAL MOTORS CORP.
2. Tap the key (122) into the keyway until both ends of the key bottom onto the crankshaft.
Fig 3: View Of Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
3. Install the crankshaft sprocket (207) onto the front of the crankshaft. Align the crankshaft key with the crankshaft sprocket keyway.
Fig 4: View Of Crankshaft Sprocket & Installer
Courtesy of GENERAL MOTORS CORP.
4. Use the J 41478  (1) and the J 41665  (2) in order to install the crankshaft sprocket. See Special Tools .

   Install the sprocket onto the crankshaft until fully seated against the crankshaft flange.

5. Rotate the crankshaft sprocket until the alignment mark is in the 12 o'clock position.
Fig 5: Installing EN 46330 In Compressed Tensioner
Courtesy of GENERAL MOTORS CORP.
6. Compress the timing chain tensioner guide and install the EN 46330  . See Special Tools .
Fig 6: View Of Timing Chain Tensioner & Bolts
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice .
7. Install the timing chain tensioner (232) and bolts (231).

   Tighten:  Tighten the timing chain tensioner bolts to 25 N.m (18 lb ft).

Fig 7: View Of Camshaft Sprocket, Timing Chain & Bolt
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
• Do not use the camshaft sprocket bolt again. Install a NEW bolt during assembly.
• The sprocket teeth and timing chain must mesh.
• The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly.

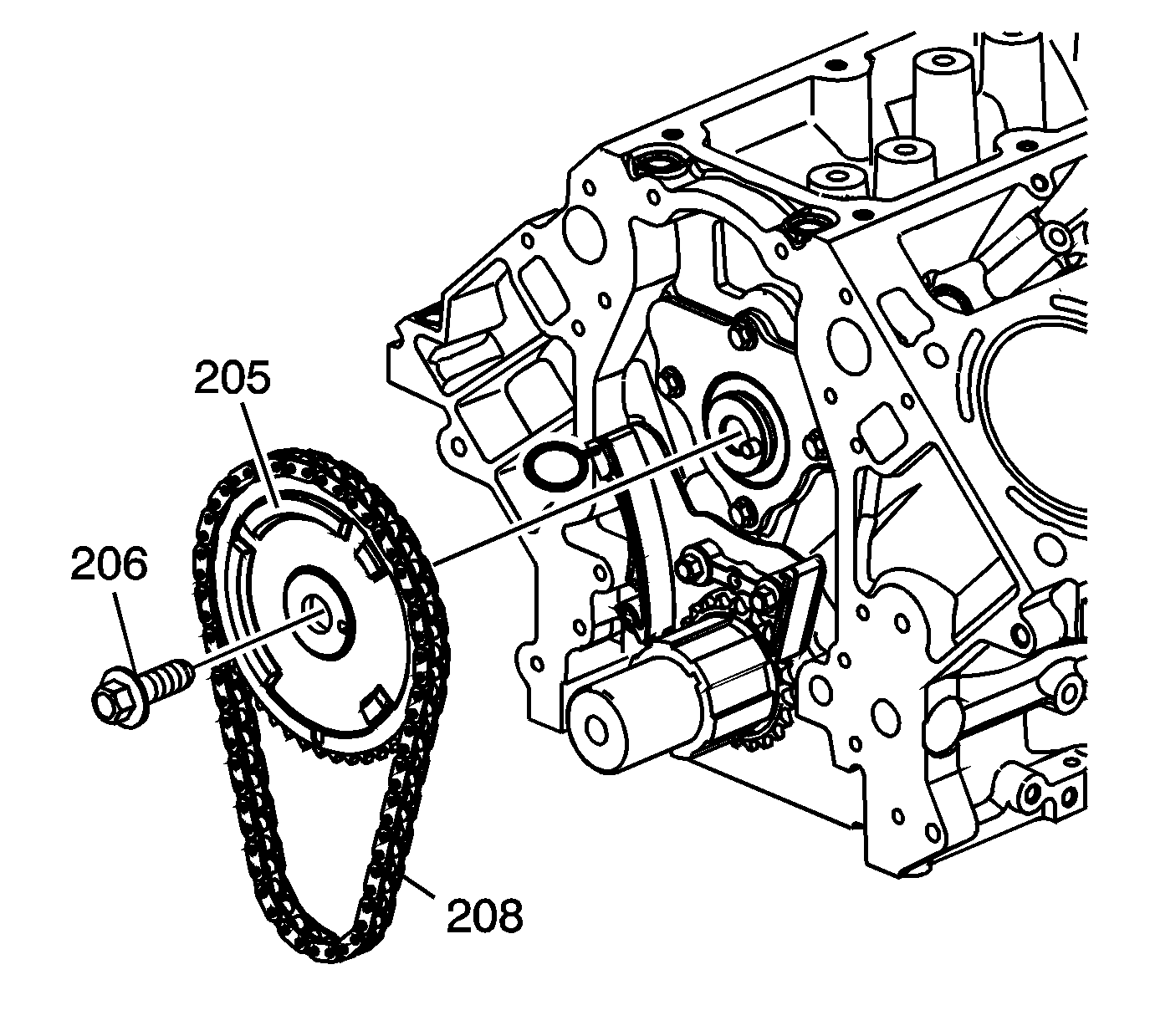

8. Install the camshaft sprocket (205), timing chain (208), and NEW bolt (206).
Fig 8: Identifying Camshaft & Crankshaft Marks
Courtesy of GENERAL MOTORS CORP.
9. Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the crankshaft sprocket (2) should be located in the 12 o'clock position.
Fig 9: Locating Tensioner Pin
Courtesy of GENERAL MOTORS CORP.
10. Remove the EN 46330  . See Special Tools .
IMPORTANT: Do not apply threadlock to the flex plate bolts at this time.
11. Temporarily install the automatic transmission flex plate and bolts. Refer to Automatic Transmission Flex Plate Installation .
Fig 10: View Of Special Tool & Bolts
Courtesy of GENERAL MOTORS CORP.
12. Install the J 42386-A  (1) and bolts. See Special Tools . Use 1 M10-1.5 x 120 mm bolt and 1 M10-1.5 x 45 mm bolt for proper tool operation.

    Tighten:  Tighten the J 42386-A  bolts to 50 N. See Special Tools .m (37 lb ft).

Fig 11: Tightening Camshaft Sprocket Bolt
Courtesy of GENERAL MOTORS CORP.
13. Tighten the camshaft sprocket bolt.

    Tighten:

    1. Tighten the camshaft sprocket bolt a first pass to 90 N.m (66 lb ft).
    2. Tighten the camshaft sprocket bolt a final pass an additional 40 degrees using the J 45059  . See Special Tools .

14. Remove the J 42386-A  and bolts. See Special Tools .
15. Remove the automatic transmission flex plate and bolt. Refer to Automatic Transmission Flex Plate Removal .
