Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Do not reuse the crankshaft oil seal or rear cover gasket.
  • Do not apply any type of sealant to the rear cover gasket, unless specified.
  • The special tool in this procedure is used to properly center the crankshaft rear oil seal.
  • The crankshaft rear oil seal will be installed after the rear cover has been installed and aligned. Install the rear cover without the crankshaft oil seal.
    • All gasket surfaces should be free of oil or other foreign material during assembly.
    • The crankshaft rear oil seal MUST be centered in relation to the crankshaft.
    • An improperly aligned rear cover may cause premature rear oil seal wear and/or engine assembly oil leaks.
    Fig 1: View Of Sealant Applied To Rear Oil Pan-To-Engine Block Junction
    GM451898Courtesy of GENERAL MOTORS CORP.
  1. Apply a 5 mm (0.2 in) bead of sealant, 20 mm (0.8 in) long to the oil pan to engine block junction. Refer to Sealers, Adhesives, and Lubricants .

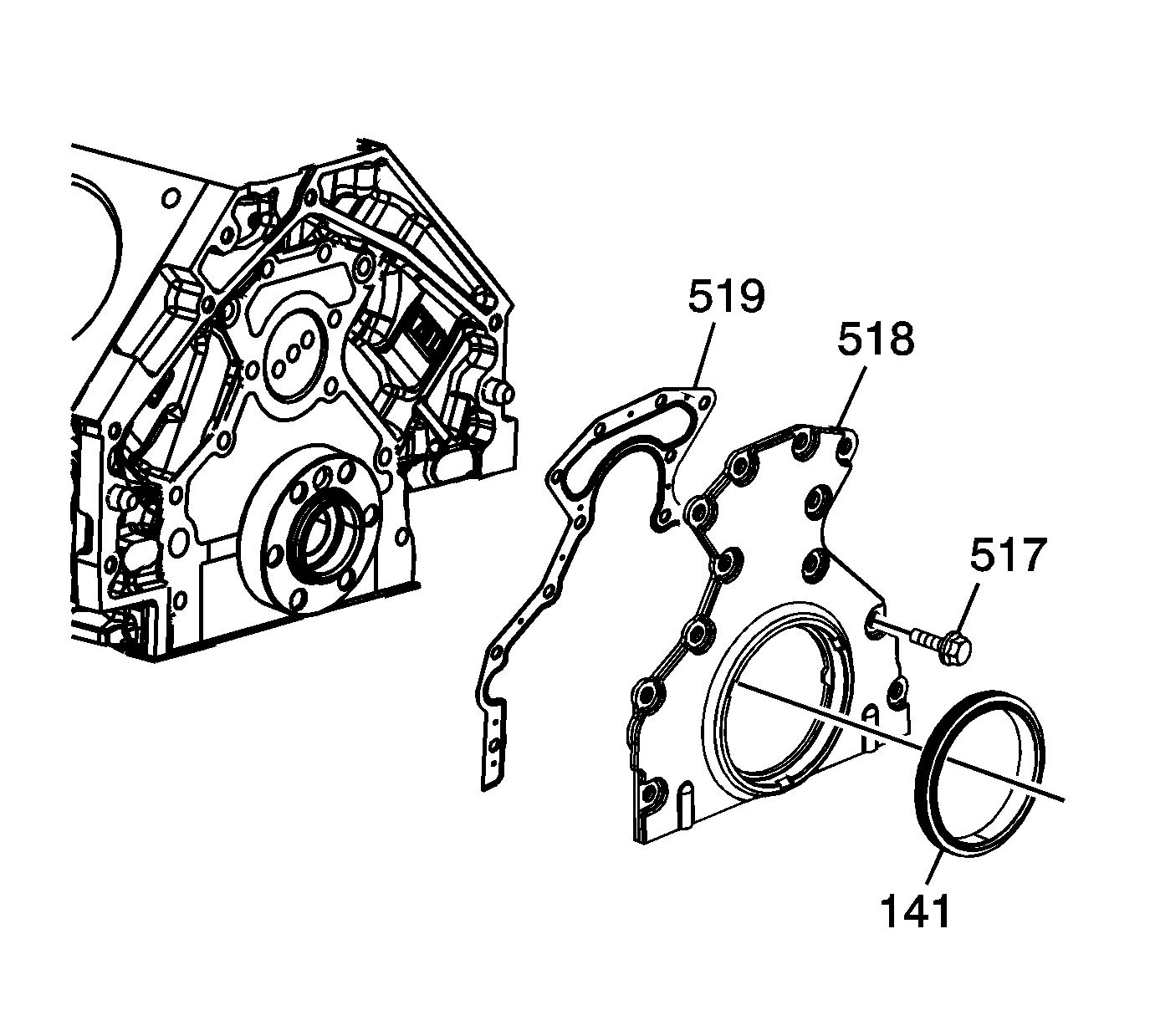

    2. Fig 2: View Of Rear Housing, Gasket & Seal
    GM1552544Courtesy of GENERAL MOTORS CORP.
  2. Position a NEW rear oil seal housing gasket (519) and the housing (518) to the engine.
  3. Install the rear oil seal housing bolts until snug. Do not overtighten.
    4. Fig 3: View Of Oil Pan-To-Rear Cover Bolts
    GM680413Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan-to-rear oil seal housing bolts (1) until snug. Do not overtighten.
    5. Fig 4: View Of J 41476
    GM451716Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The tapered legs of the alignment tool must enter the rear cover oil seal bore.
  5. Rotate the crankshaft until 2 opposing flywheel bolt holes are parallel to the oil pan surface.
  6. Install the J 41476  and bolts onto the rear of the crankshaft. See Special Tools .
    7. NOTE: Refer to Fastener Notice .
  7. Tighten the J 41476  bolts until snug. See Special Tools . Do not overtighten.

    Tighten:

    1. Tighten the oil pan-to-rear oil seal housing bolts to 12 N.m (106 lb in).
    2. Tighten the rear oil seal housing bolts to 30 N.m (22 lb ft).

  8. Remove the J 41476  . See Special Tools .
  9. Install a NEW crankshaft rear oil seal. Refer to Crankshaft Rear Oil Seal Replacement .
  10. Remove the automatic transmission flexplate, refer to Automatic Transmission Flex Plate Replacement .
