Stabilizer Shaft Replacement (1500 Series)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

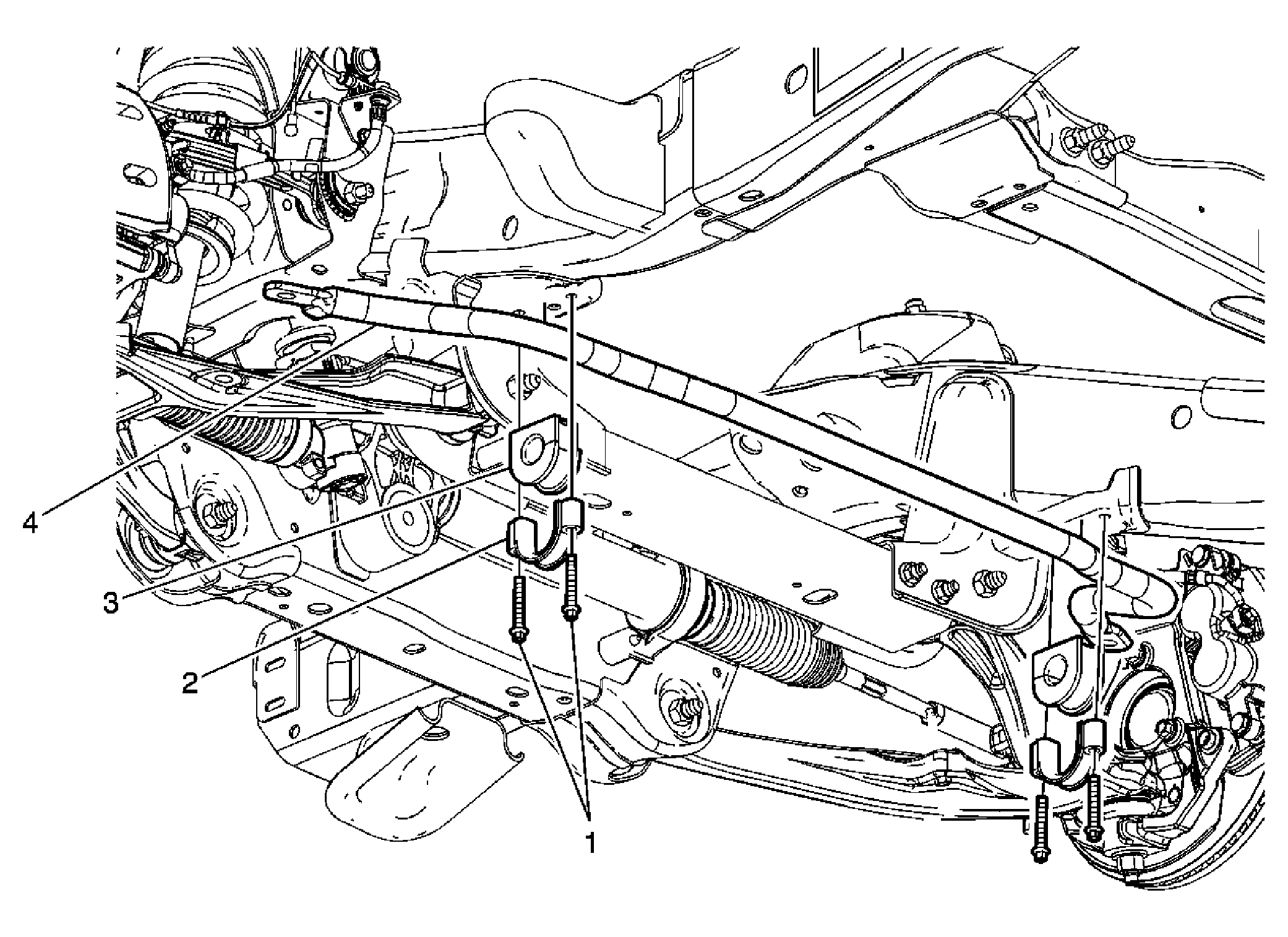

Fig 1: View Of Front Stabilizer Shaft & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (1500 Series) or Stabilizer Shaft Link Replacement (2500 Series) .
1	Front Stabilizer Shaft Bracket Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft) Tip: Remove the stabilizer shaft bolts.
2	Front Stabilizer Shaft Brackets (Qty: 2) Tip: Remove the stabilizer shaft insulator brackets from the insulators.
3	Front Stabilizer Shaft Insulators (Qty: 2) Tip: Remove the stabilizer shaft insulators from the stabilizer shaft. The stabilizer shaft insulator slits must be facing the rear of the vehicle.
4	Front Stabilizer Shaft
