Stabilizer Shaft Link Replacement (1500 Series)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

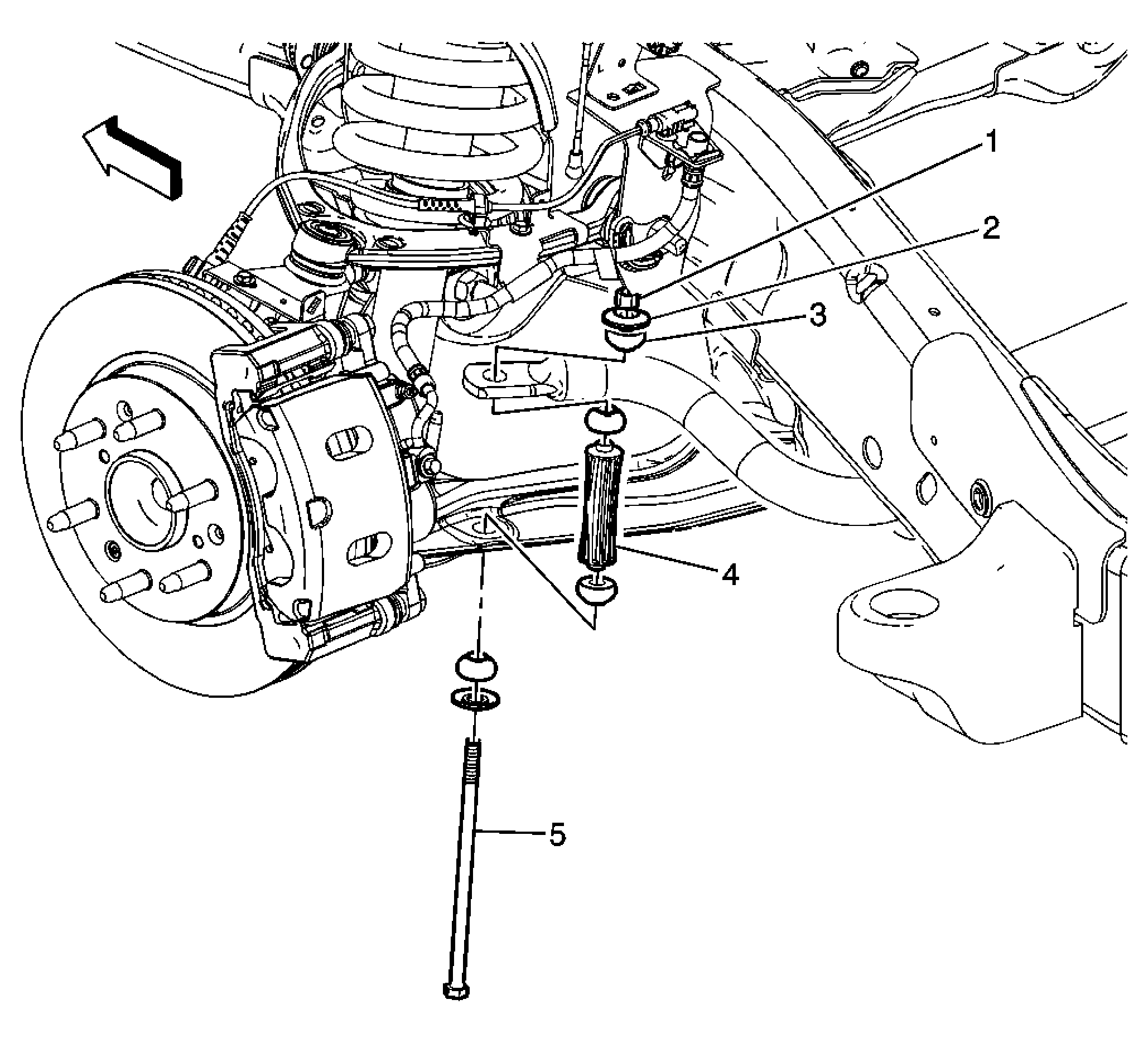

Fig 1: View Of Stabilizer Shaft Link & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel and tire. Refer to Tire and Wheel Removal and Installation .
1	Stabilizer Shaft Link Nut NOTE: Refer to Fastener Notice . Tighten: 23 N.m (17 lb ft) Tip: Remove the nut from the stabilizer link.
2	Stabilizer Shaft Link Washer (Qty: 2) Tip: Remove the washer from the link.
3	Stabilizer Shaft Link Insulator (Qty: 4) Tip: Remove the insulators from the link.
4	Stabilizer Shaft Link Spacer Tip: Remove the spacer from the link.
5	Stabilizer Shaft Link Bolt
