Installation Procedures

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, align the hinge to the alignment marks made with the grease pencil.

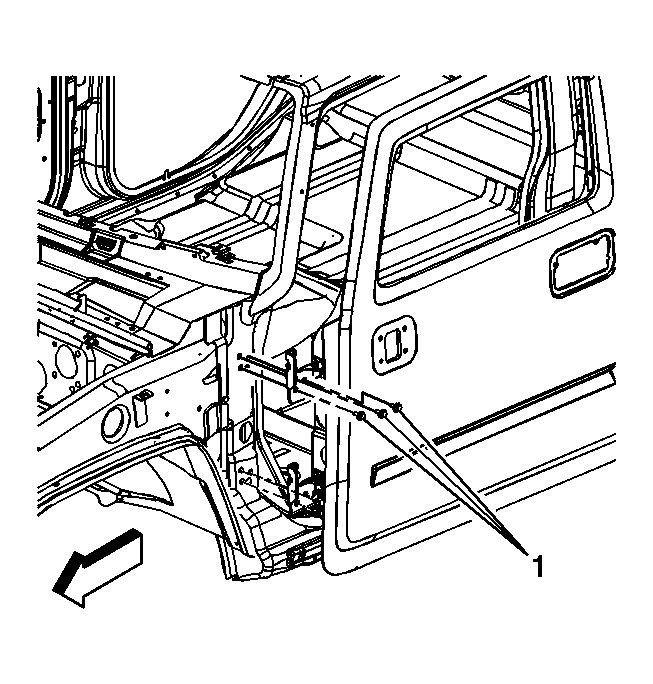

    2. Fig 1: Vehicle Hinge Fasteners
    GM838439Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the fasteners (1) retaining the hinge to the vehicle.

    Tighten:  Tighten the fasteners to 25 N.m (18 lb ft).

    3. Fig 2: Front Door Hinge Fasteners
    GM838473Courtesy of GENERAL MOTORS CORP.
  3. Install the fasteners (1) retaining the hinge to the door.

    Tighten:  Tighten the fasteners to 25 N.m (18 lb ft).

  4. Adjust the door if necessary. Refer to Front Side Door Adjustment .
