Roof Console Replacement

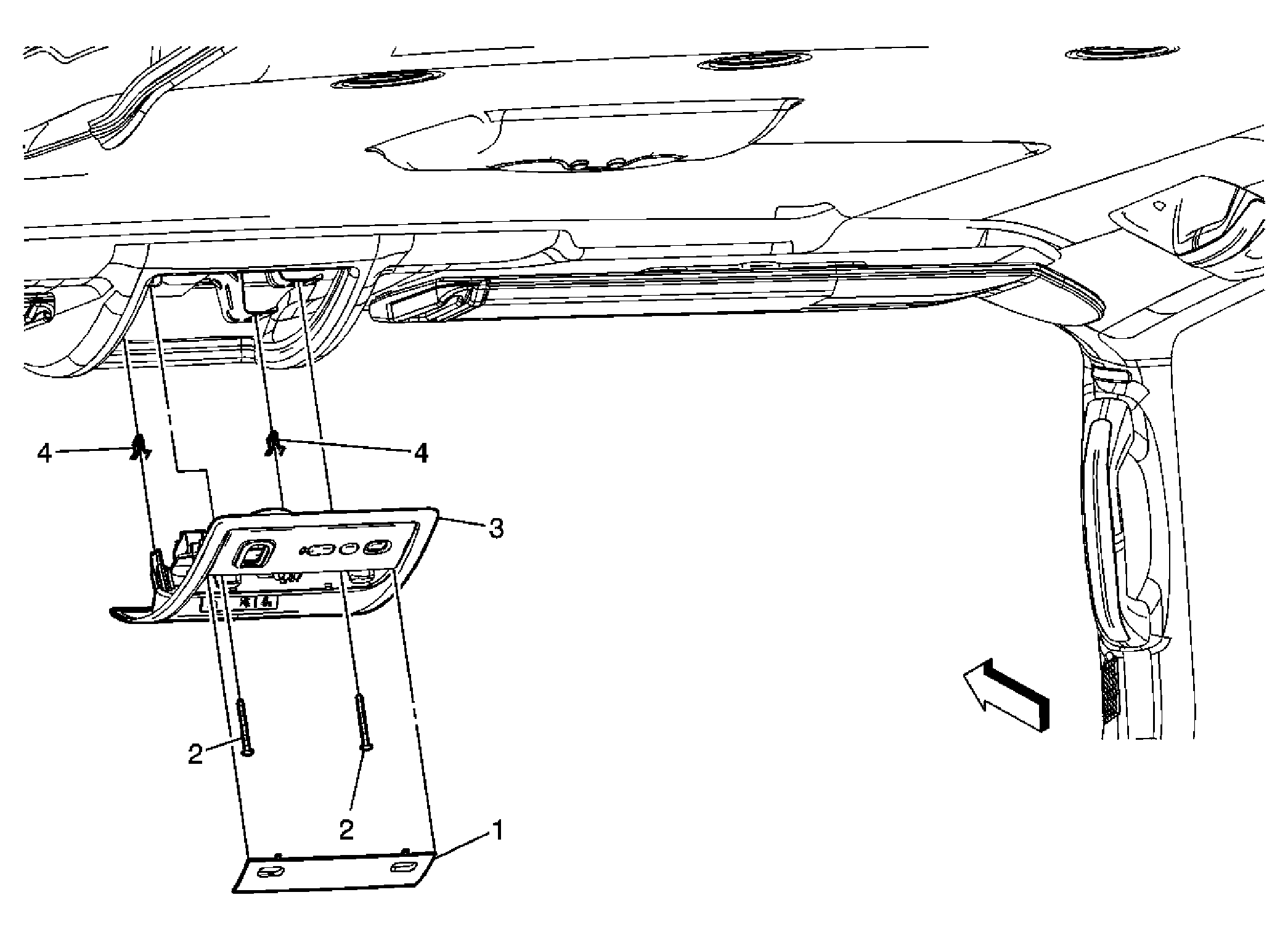

Fig 1: Roof Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console Reading Lamp Lens Refer to Overhead Console Reading Lamp and Bulb Replacement
2	Overhead Console Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
3	Overhead Console Assembly Procedure Disconnect the electrical connections. When replacing the overhead console assembly, transfer all necessary components.
4	Retainer Clips (Qty: 2)
