Overhead Console Reading Lamp and Bulb Replacement

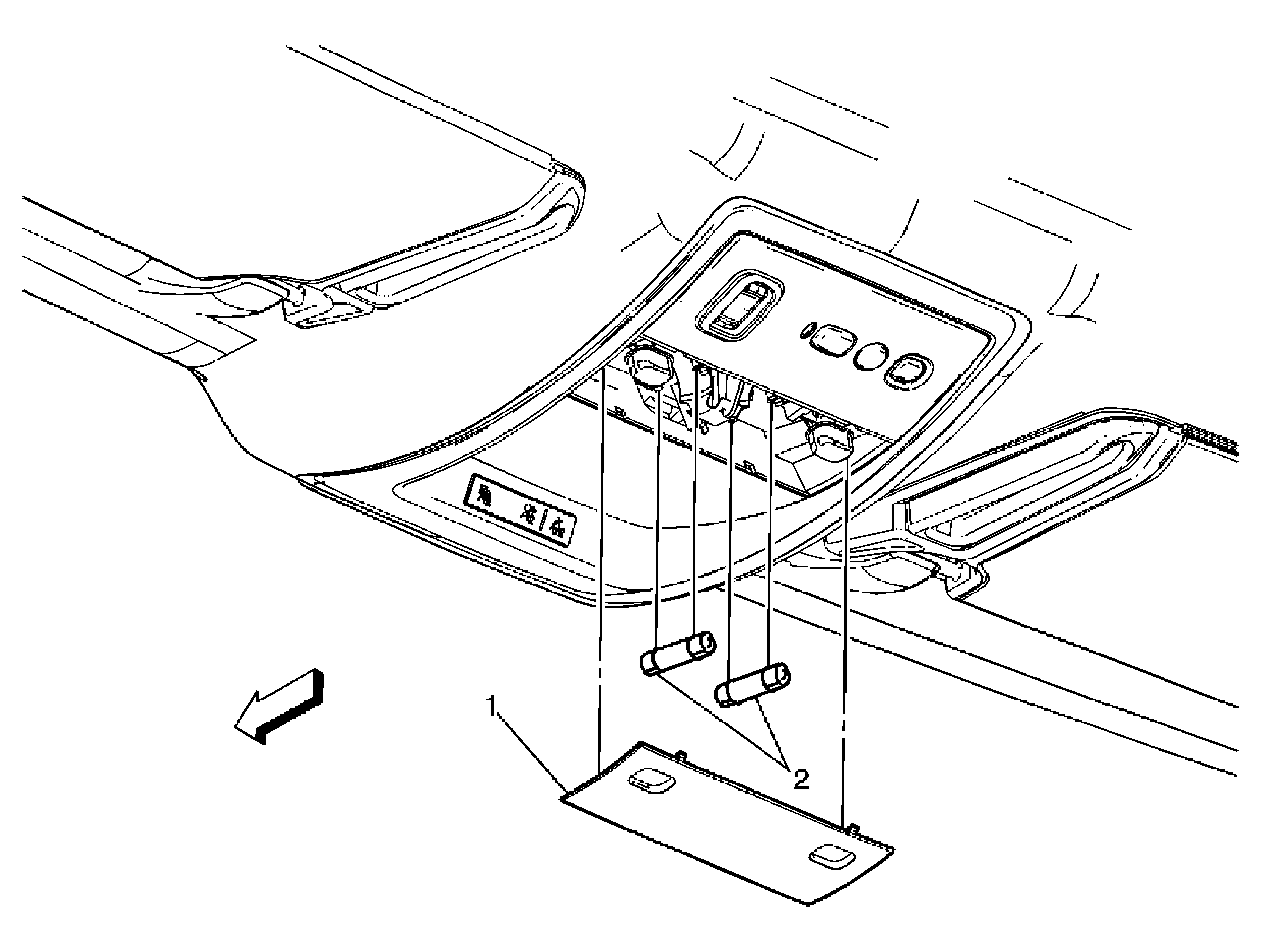

Fig 1: Overhead Console Reading Lamp and Bulb
GM1954517Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Console Lamp Lens
Procedure:
Carefully use a flat bladed tool, and release the tabs retaining the lens to the roof console.
2 Roof Console Lamp Bulb (Qty: 2)
