Windshield Side Garnish Molding Replacement

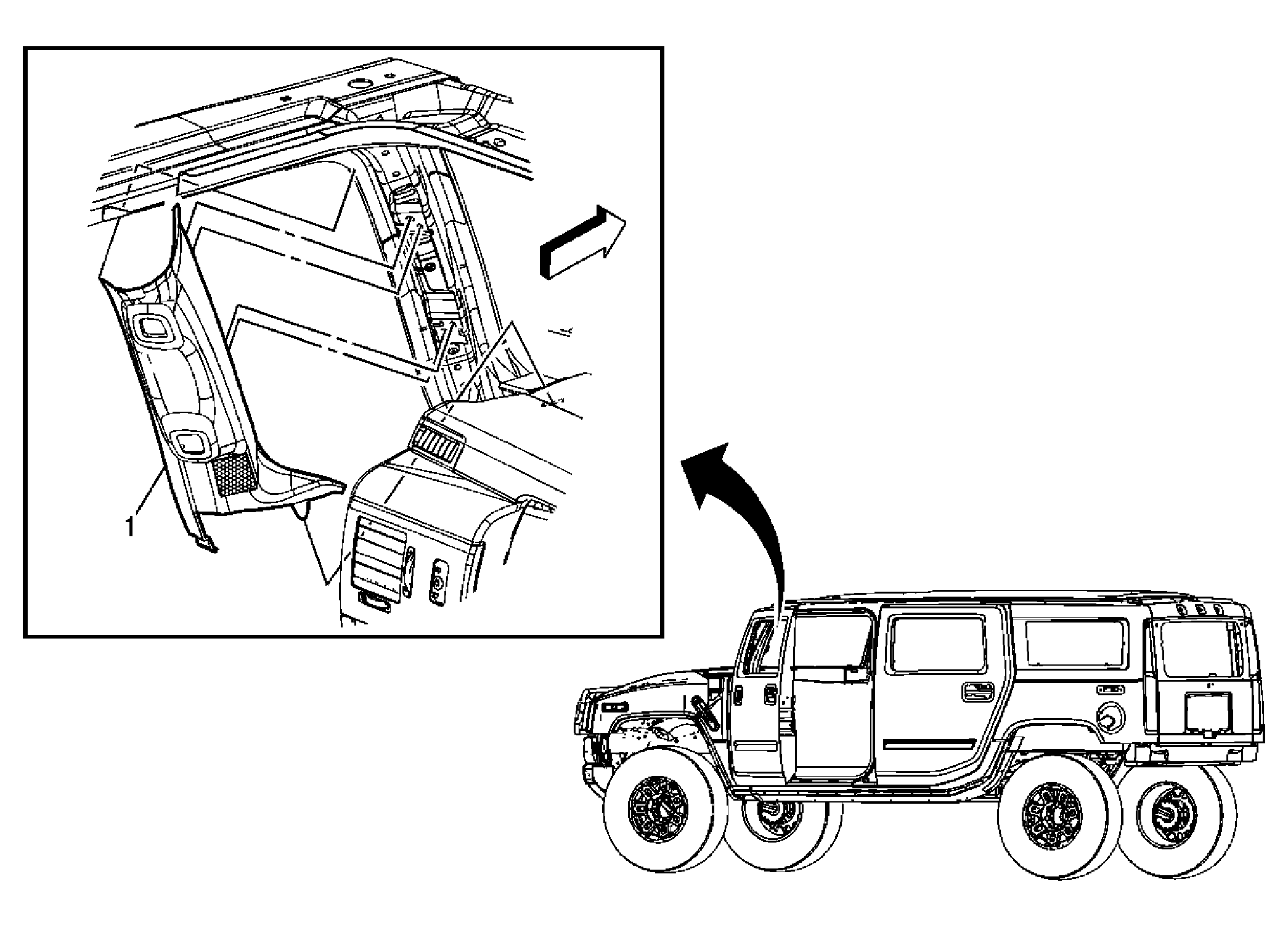

Fig 1: Windshield Side Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front assist handle. Refer to Front Assist Handle Replacement .
1	Windshield Side Garnish Molding Assembly Procedure Grasp the garnish molding and pull it away from the body. Disconnect the electrical connections. When replacing the windshield side garnish moldings, transfer all necessary components.

Callout

Component Name

Preliminary Procedure:
Remove the front assist handle. Refer to Front Assist Handle Replacement .

Windshield Side Garnish Molding Assembly

Procedure

Grasp the garnish molding and pull it away from the body.
Disconnect the electrical connections.
When replacing the windshield side garnish moldings, transfer all necessary components.
