Instrument Panel Lower Filler Replacement - Right Side

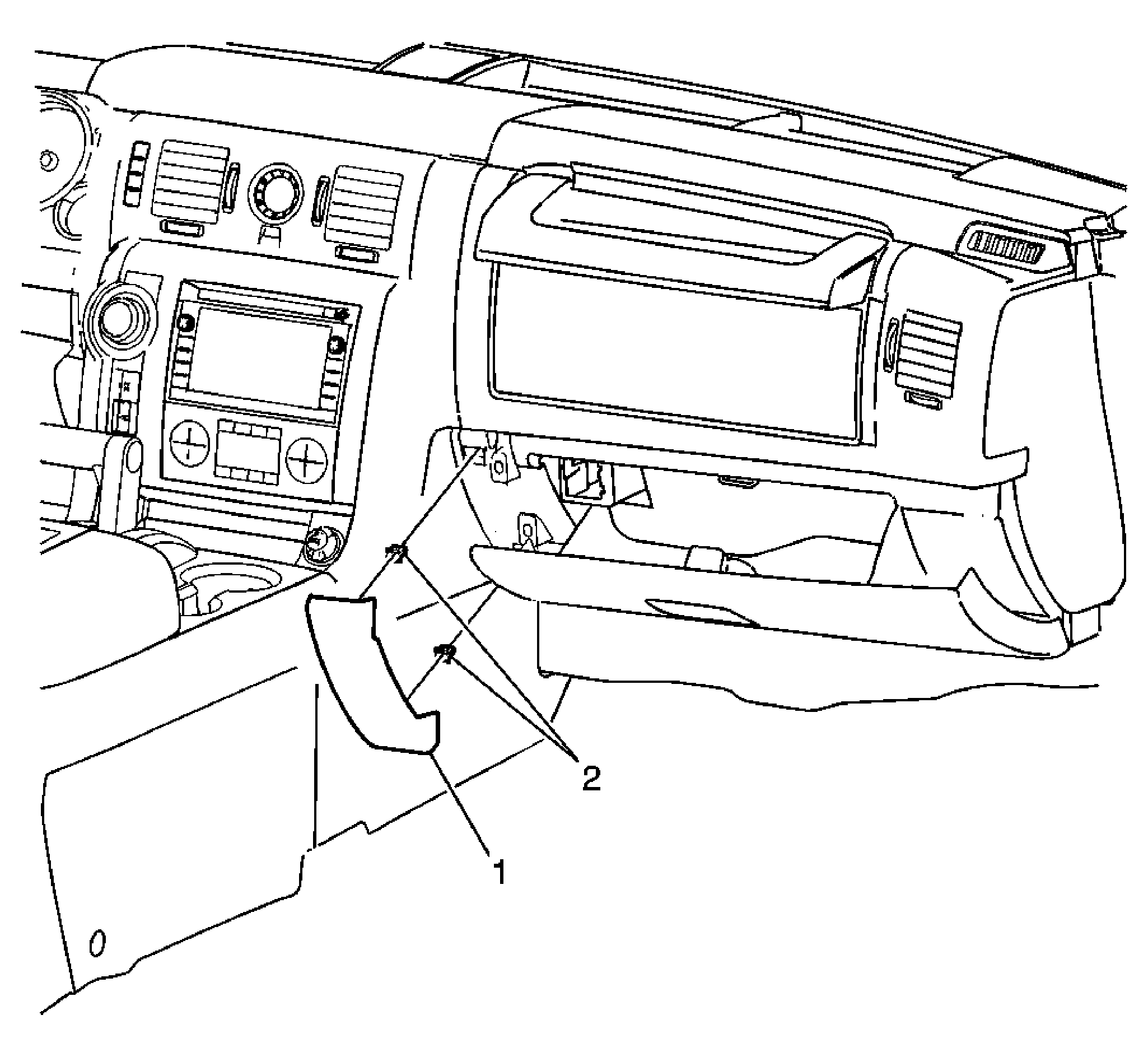

Fig 1: Instrument Panel Lower Filler - Right Side
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Open the Instrument Panel Compartment Door.
1
Instrument Panel Lower Filler Panel
2
Retainer Clips (Qty: 2)
