Instrument Panel Lower Filler Replacement - Left Side

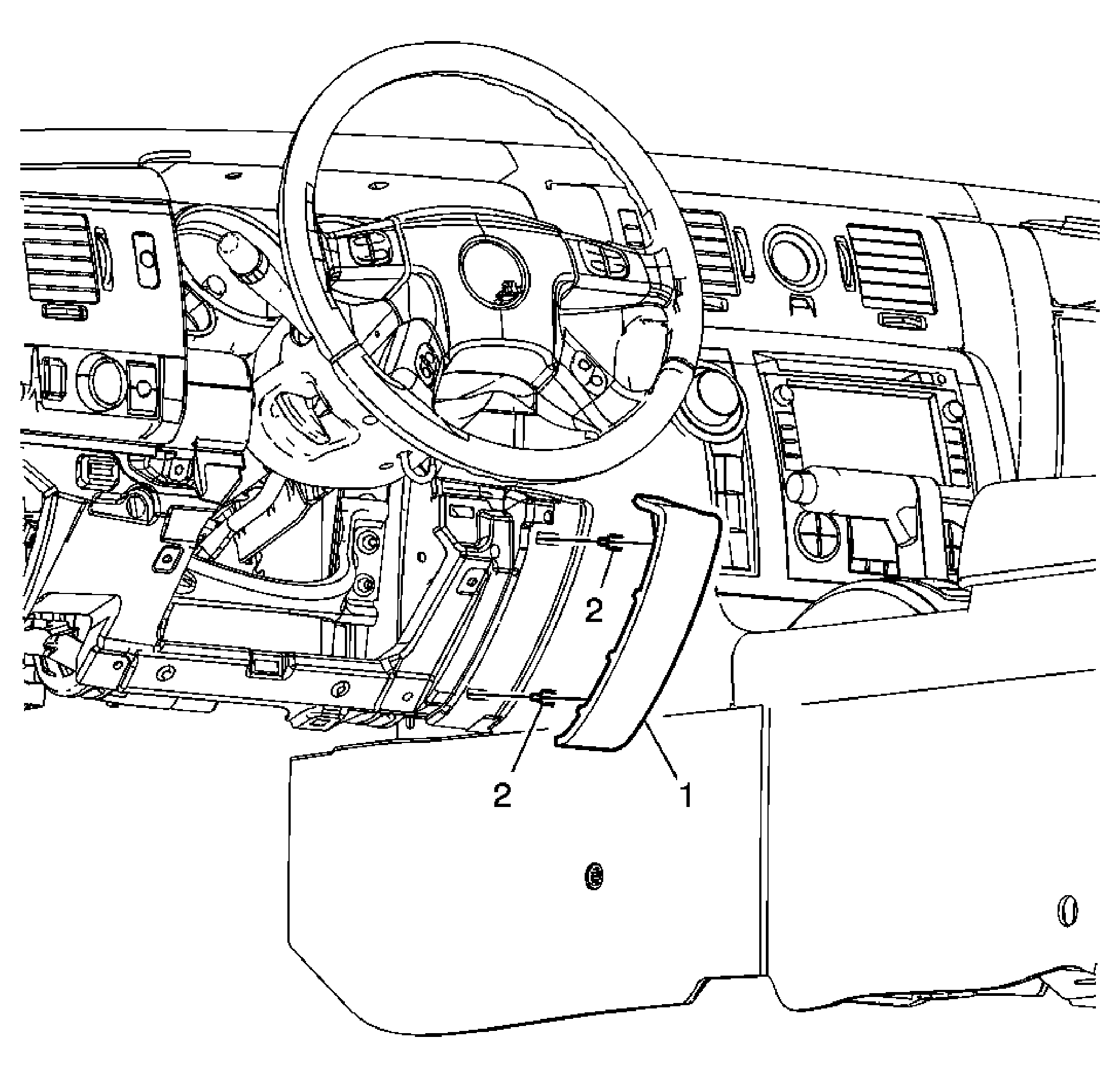

Fig 1: Instrument Panel Lower Filler - Left Side
GM1912396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel drivers knee bolster assembly. Refer to Driver Knee Bolster Replacement .
1 Instrument Panel Lower Filler Panel
2 Retainer Clips (Qty: 2)
