Instrument Panel Compartment Door Opening Frame Replacement

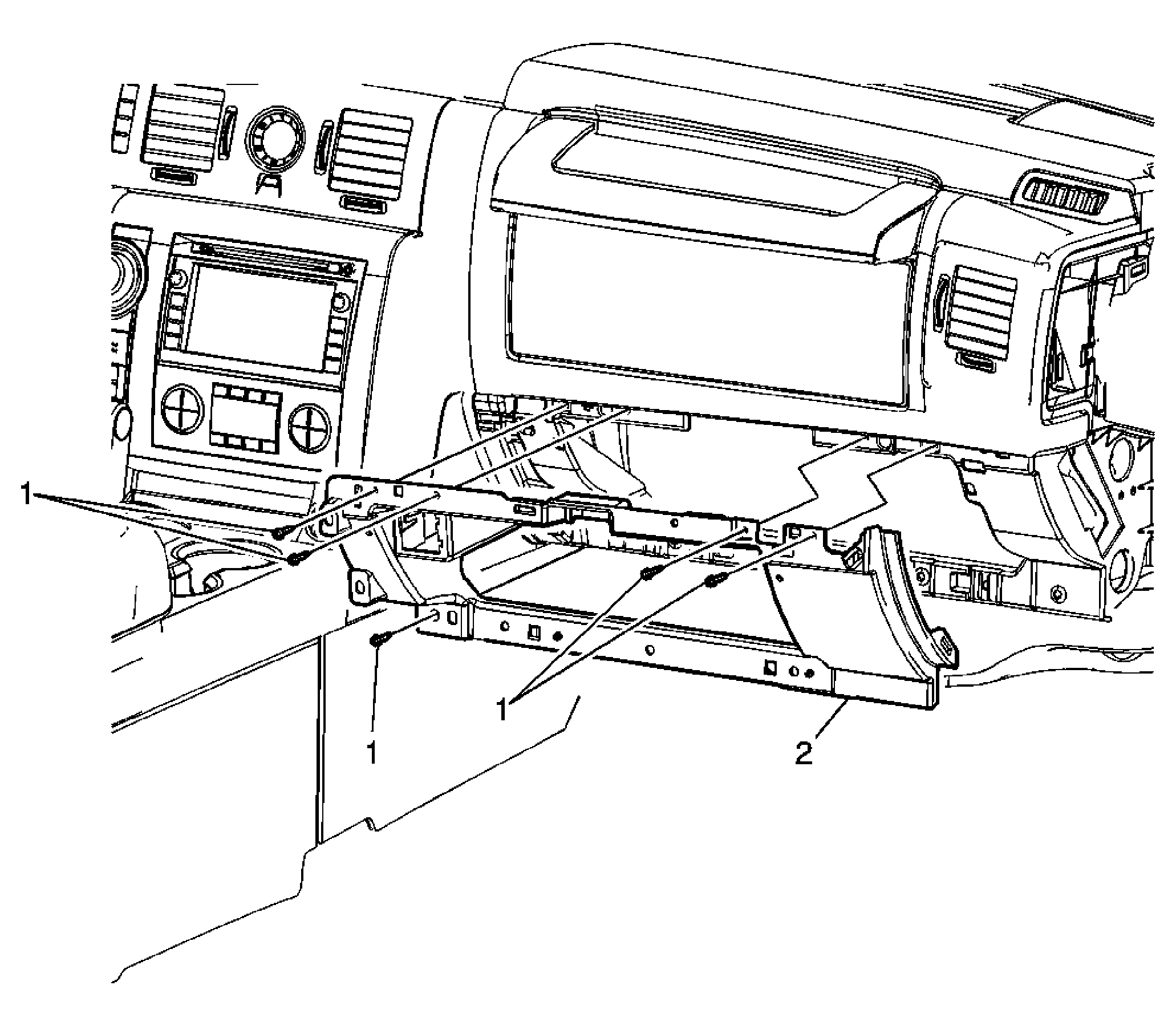

Fig 1: Instrument Panel Compartment Door Opening Frame
GM1937861Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel compartment door assembly. Refer to Instrument Panel Compartment Door Replacement .
1 Instrument Panel Compartment Door Opening Frame Screw (Qty: 6)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
2 Instrument Panel Compartment Door Opening Frame Assembly

Procedure

  1. Disconnect the electrical connections.
  2. When replacing the instrument panel compartment opening frame assembly, transfer all necessary components.
