Instrument Panel Compartment Door Replacement

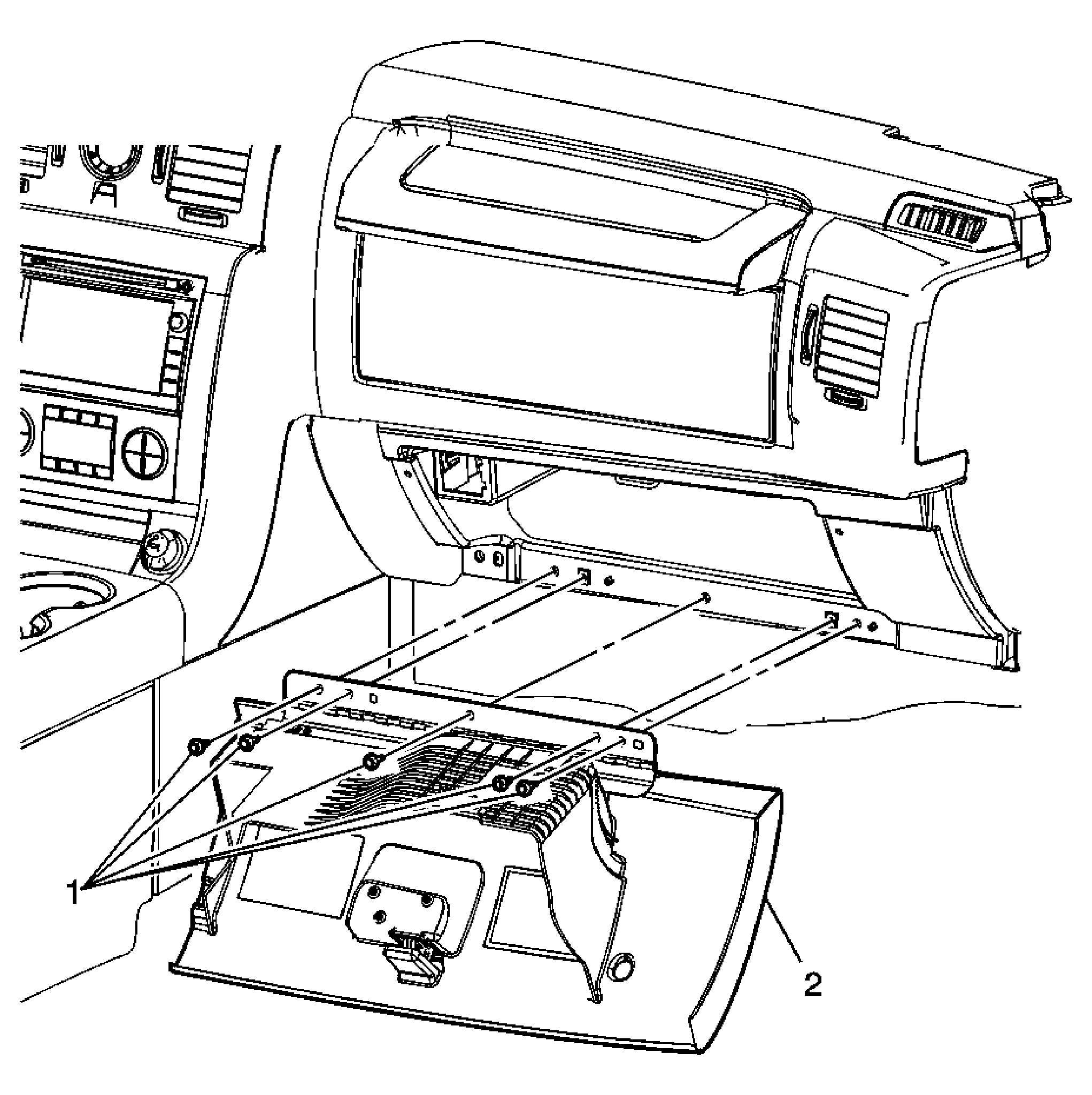

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the instrument panel compartment door past the stop. |
|
| 1 | Instrument Panel Compartment Door Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Compartment Door Assembly Procedure: When replacing the instrument panel compartment door assembly, transfer all necessary components. |
