Front Floor Console Armrest Replacement

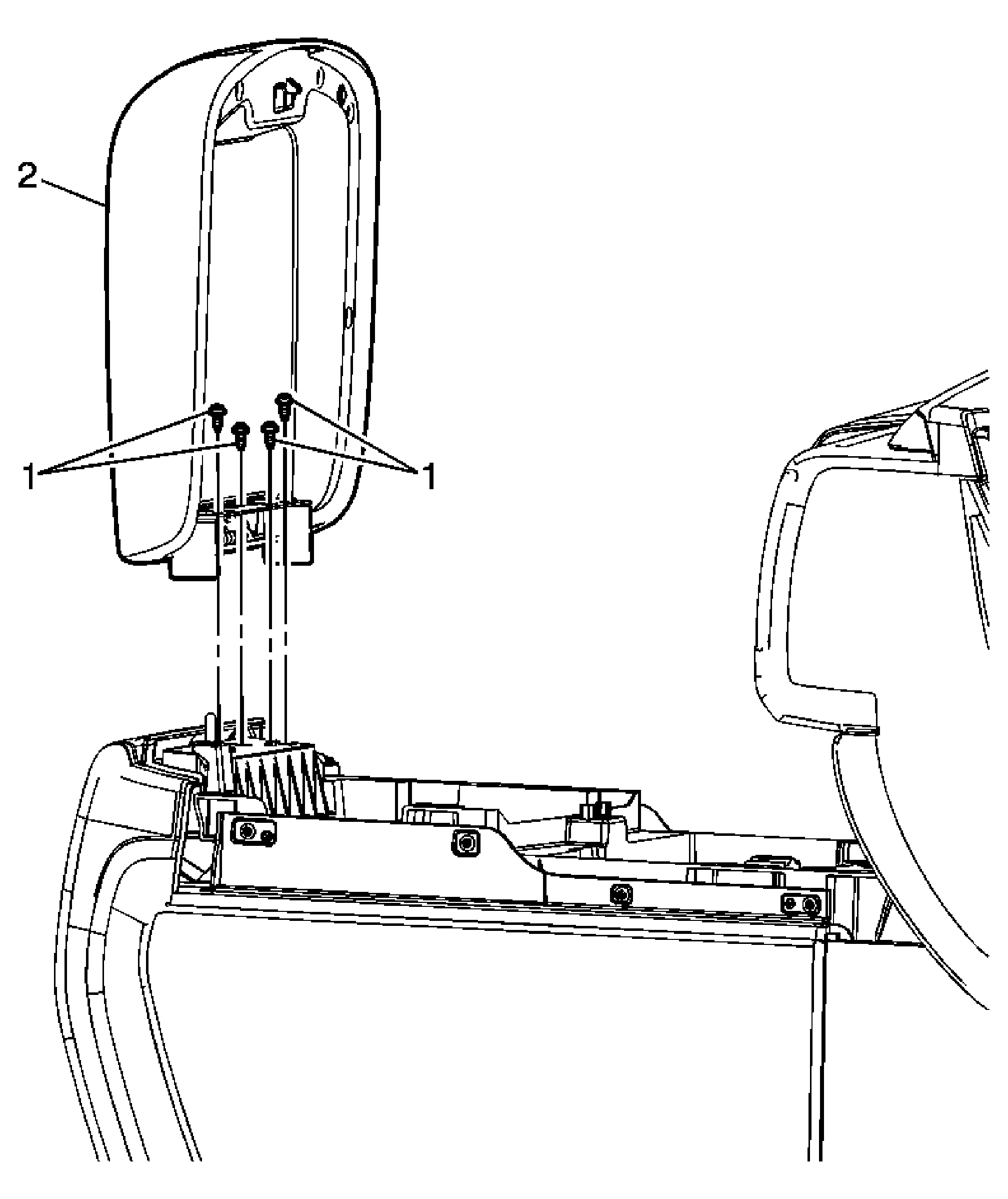

Fig 1: Front Floor Console Armrest

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .
1	Front Floor Console Armrest Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  2.5 N.m (22 lb in)
2	Front Floor Console Armrest Assembly
