Instrument Panel Side Trim Panel Replacement

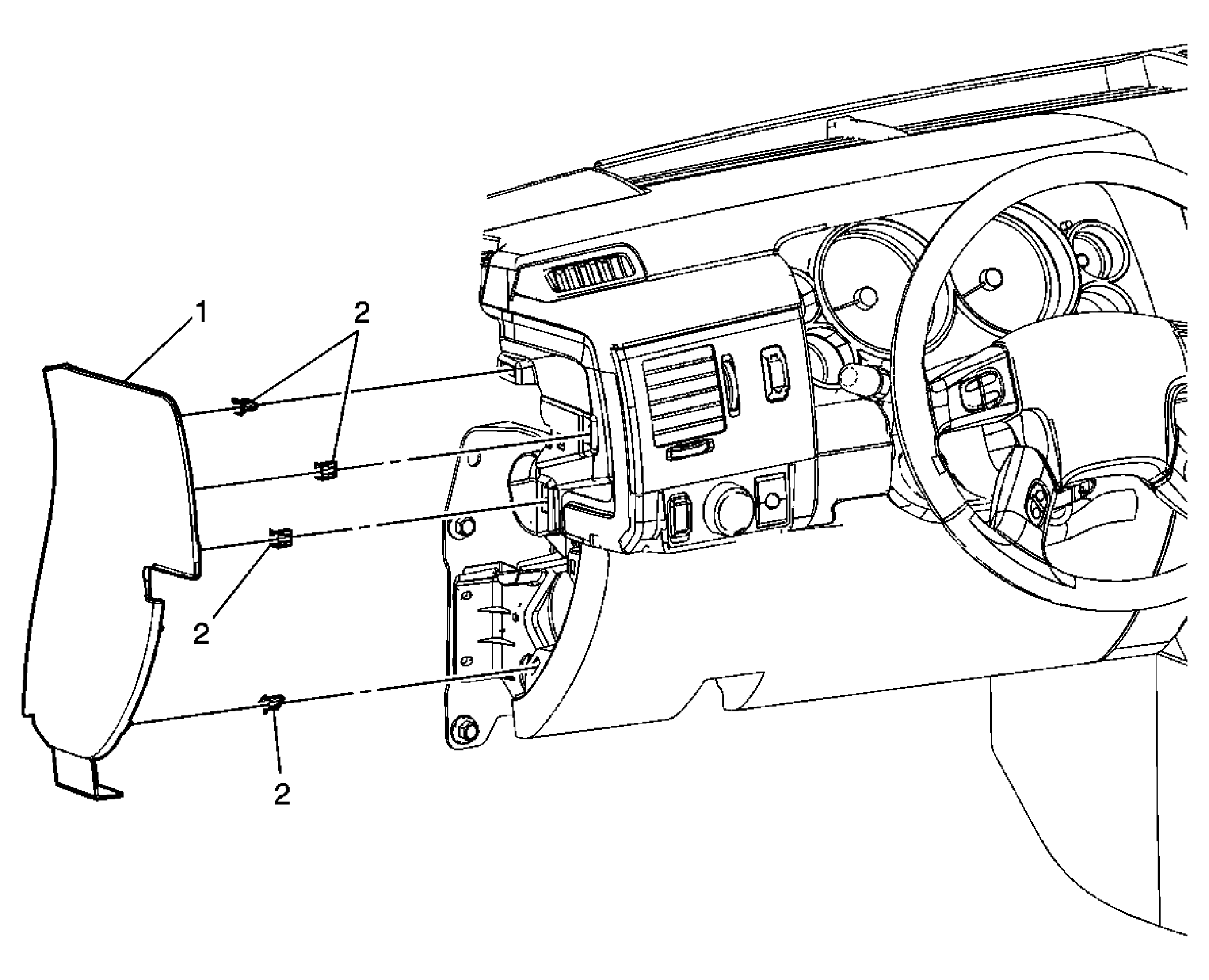

Fig 1: Instrument Panel Side Trim Panel

GM1912388

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Side Trim Panel
2	Retainer Clips (Qty: 4)
