Clock Replacement

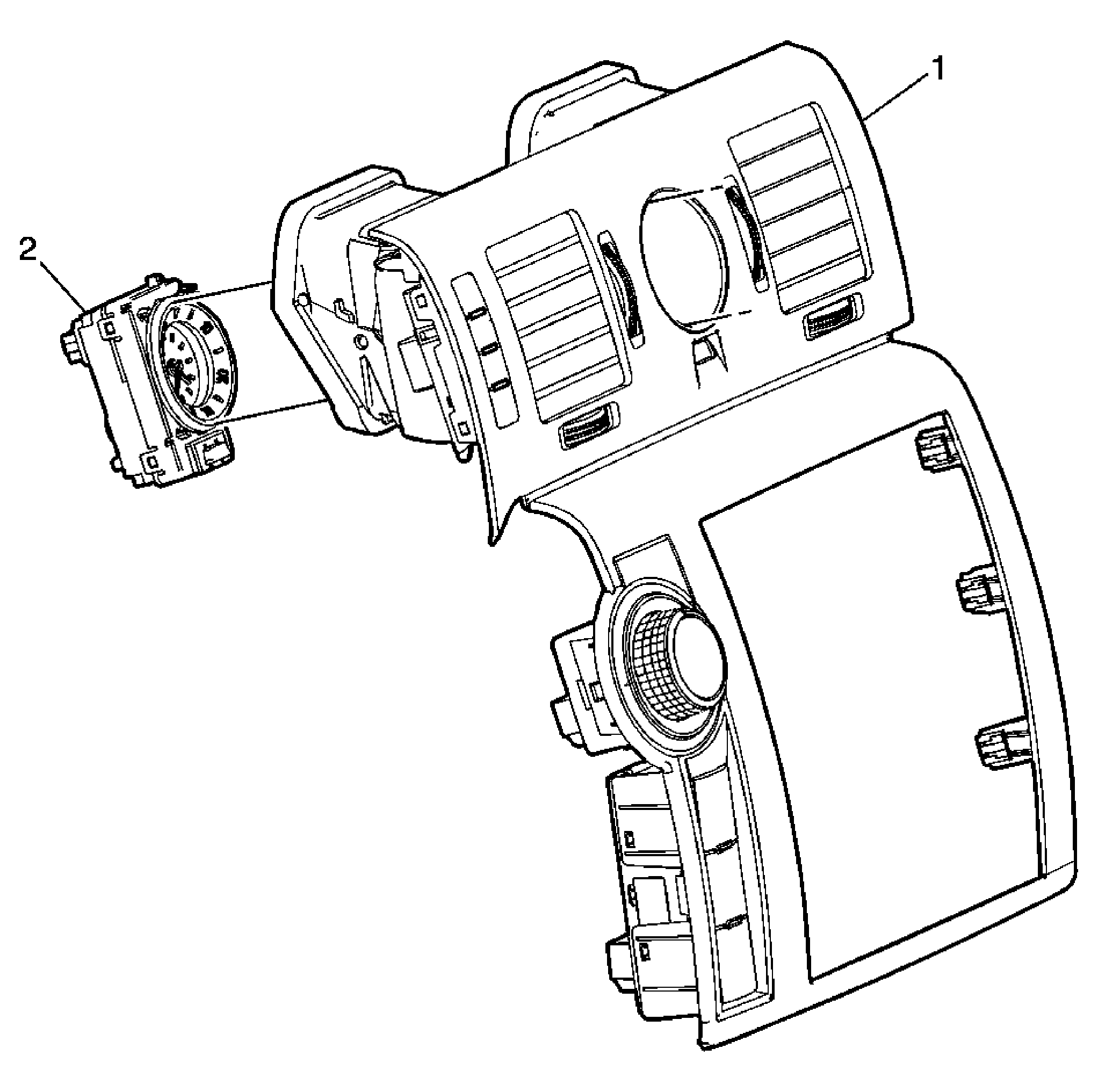

Fig 1: Clock
GM1913336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Center Air Outlet Bezel Assembly
Refer to Instrument Panel Center Air Outlet Bezel Replacement .
2 Clock Assembly
Procedure:
Unsnap the clock assembly from the center air outlet bezel.
