Installation Procedure

  1. Inspect the splines of the transfer case output shaft for a sufficient coating of lubricant. If the output shaft does not have a sufficient coating of lubricant, lubricate the shaft with lubricant GM P/N 12345879 (Canadian P/N 10953511) or with an equivalent lubricant meeting GM specification 9985830.

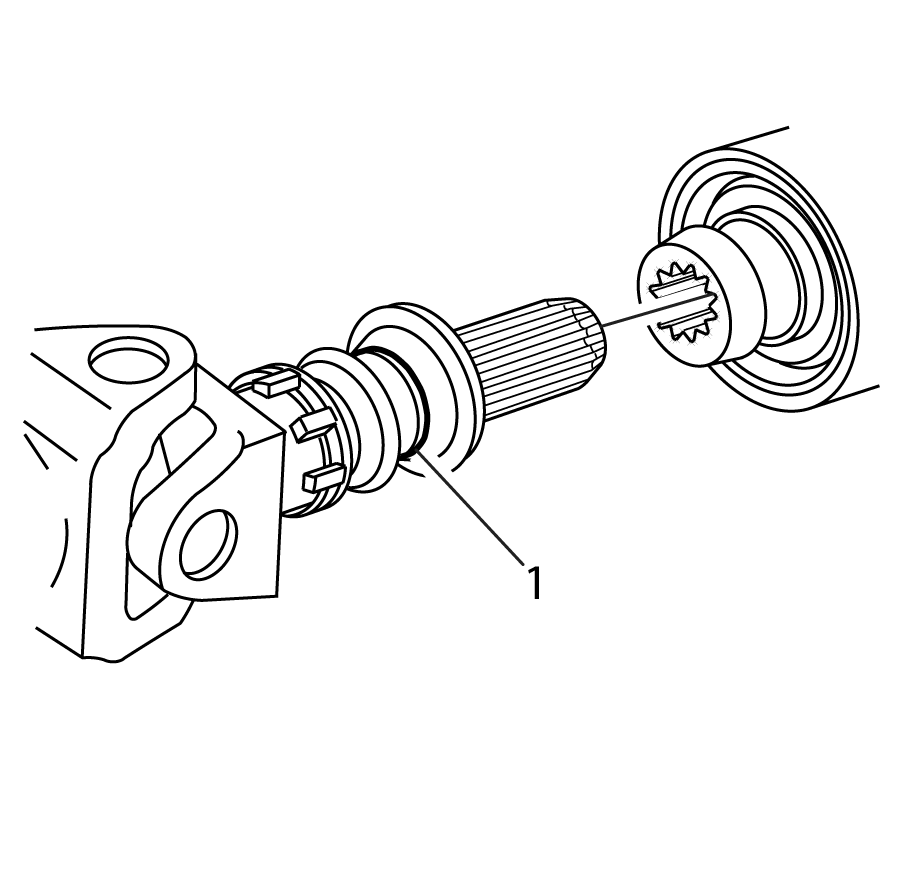

    2. Fig 1: View Of Boot & Groove On Transfer Case Output Shaft (Single Clamp Style Boot)
    GM914937Courtesy of GENERAL MOTORS CORP.
  2. Install the propeller shaft splines into the transfer case output shaft.
    3. Fig 2: Propeller Shaft & Front Axle Pinion Yoke
    GM914933Courtesy of GENERAL MOTORS CORP.
  3. Install the propeller shaft (5) to the front axle pinion yoke (1).

    Align the reference marks that were made during removal.

    4. NOTE: Refer to Fastener Notice .
  4. Install the yoke retainers (7) and the bolts (6).

    Tighten:  Tighten the yoke retainer bolts to 25 N.m (18 lb ft).

  5. Install the boot onto the transfer case output shaft until the boot snaps into the groove on the output shaft.
  6. Install the transfer case shield. Refer to Transfer Case Shield Replacement .
  7. Lower the vehicle.
