Transfer Case Shield Replacement

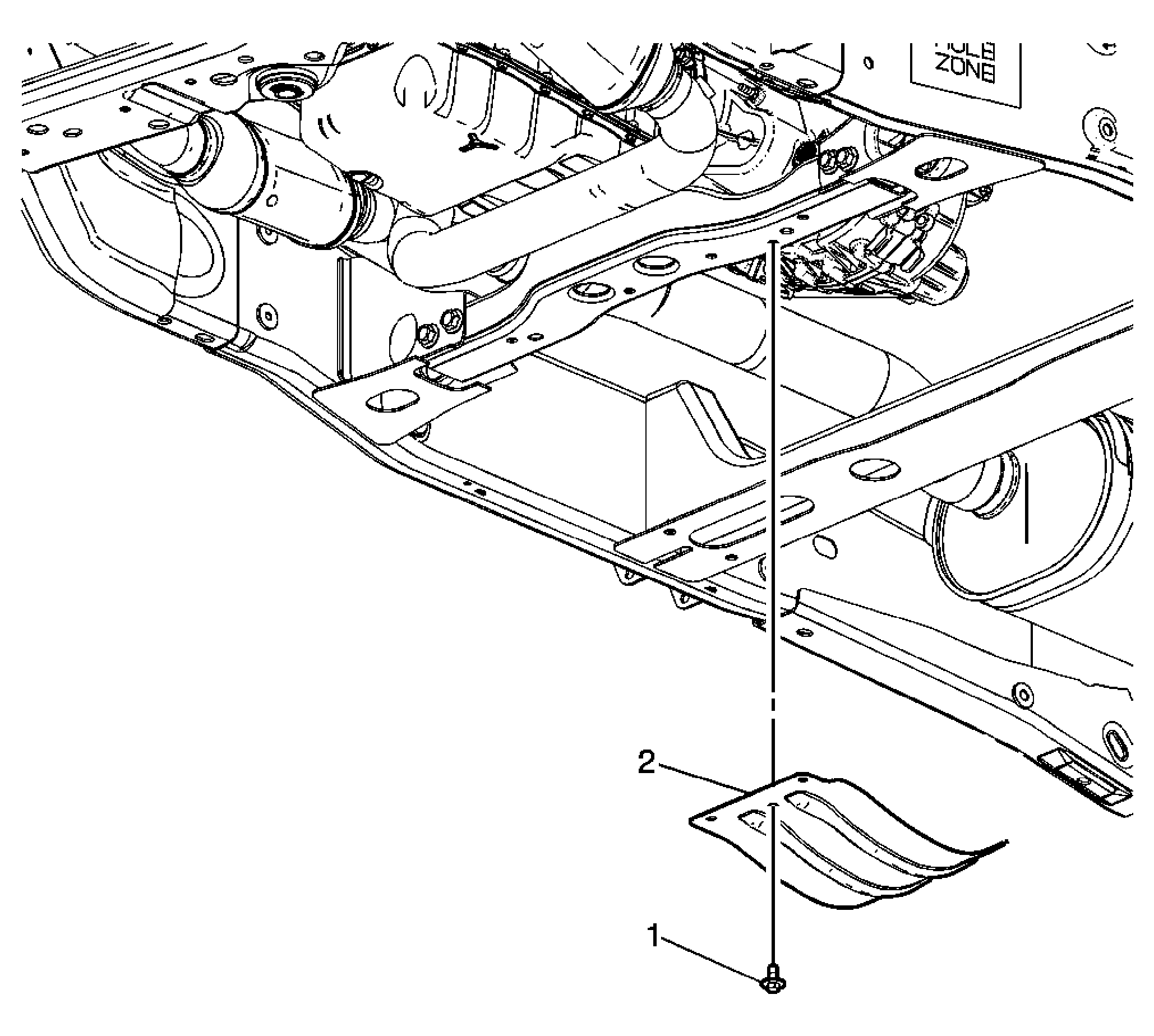

Fig 1: Transfer Case Shield
GM1972338Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the catalytic converter guard. Refer to Transfer Case Shield Replacement .
1 Transfer Case Shield Bolt
NOTE: Refer to Fastener Notice .

Tighten:  30 N.m (22 lb ft)
2 Transfer Case Shield
