Removal Procedure

CAUTION: Refer to Brake Fluid Irritant Caution .
NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .
  1. Apply and release the brake pedal 20 times to deplete the hydraulic brake booster accumulator reserve.
    2. IMPORTANT: Reference mark the brake pipe location for correct installation.
    Fig 1: Identifying 2 Rear Brake Pipes
    GM1977729Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 rear brake pipes (1) from the brake master cylinder.

    Cap the brake pipe fittings and plug the master cylinder outlet ports to prevent brake fluid loss and contamination.

    3. IMPORTANT: Reference mark the brake pipe location for correct installation.
    Fig 2: Identifying 2 Front Brake Pipes
    GM1977730Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 front brake pipes (1) from the brake master cylinder.

    Cap the brake pipe fittings and plug the master cylinder outlet ports to prevent brake fluid loss and contamination.

  4. Disconnect the electrical connectors at the brake pressure modulator valve (BPMV).
  5. Disconnect the brake fluid level sensor electrical connector.
  6. Remove the knee bolster. Refer to Driver Knee Bolster Replacement .
    7. Fig 3: View Of Brake Master Cylinder Pushrod Retainer Bolt
    GM1977731Courtesy of GENERAL MOTORS CORP.
  7. Remove the brake master cylinder pushrod retainer bolt (1).
    8. Fig 4: View Of Brake Master Cylinder Pushrod Retainer
    GM1977732Courtesy of GENERAL MOTORS CORP.
  8. Remove the brake master cylinder pushrod retainer (1).
    9. Fig 5: View Of Stoplamp Switch
    GM1977733Courtesy of GENERAL MOTORS CORP.
  9. Simultaneously remove the brake master cylinder pushrod and the stoplamp switch (1) from the brake pedal clevis pin.
    10. IMPORTANT: It may be necessary to reposition or remove some of the wiring harnesses from their retainers to provide clearance to remove the brake master cylinder nuts.
    Fig 6: View Of The Brake Master Cylinder Nuts
    GM1977734Courtesy of GENERAL MOTORS CORP.
  10. Remove the brake master cylinder nuts (1).

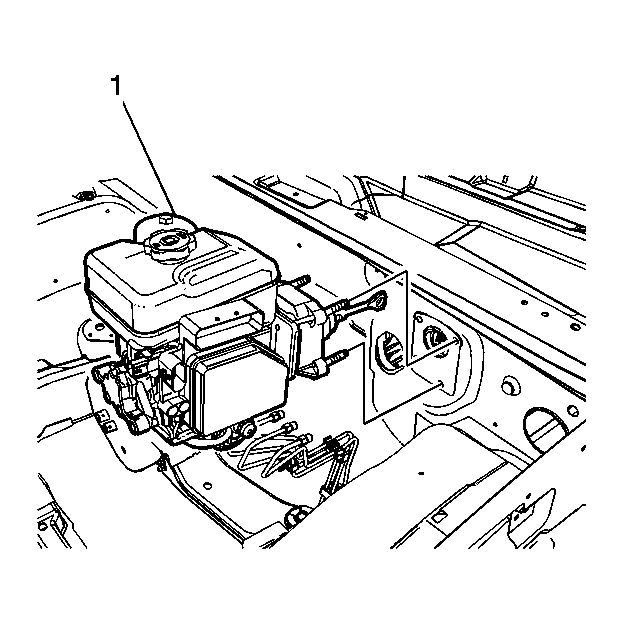

    11. Fig 7: Identifying Brake Master Cylinder And Power Brake Booster Assembly
    GM1977735Courtesy of GENERAL MOTORS CORP.
  11. Remove the brake master cylinder and power brake booster assembly (1).
