Installation Procedure

    Fig 1: Front Brake Cable & Park Brake Lever
    GM913310Courtesy of GENERAL MOTORS CORP.
  1. Connect the front park brake cable to the park brake lever.

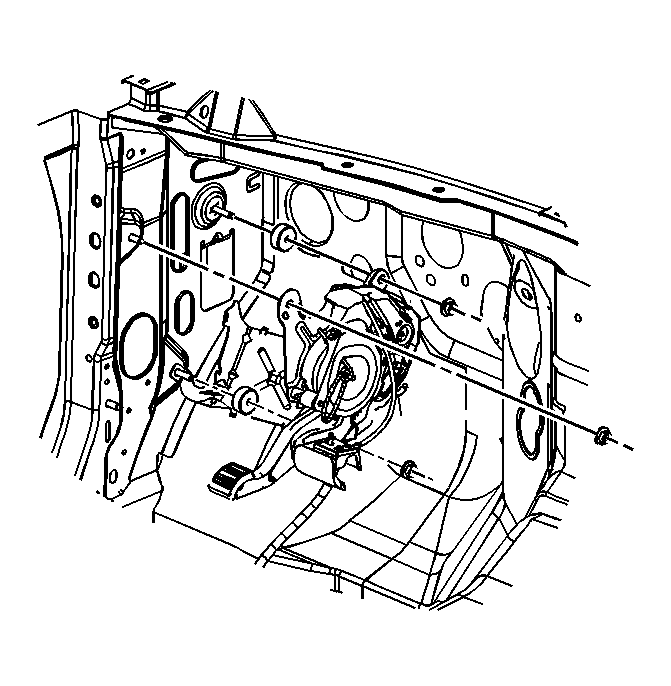

    2. Fig 2: Park Brake Lever Mounting Nuts
    GM793126Courtesy of GENERAL MOTORS CORP.
  2. Install the park brake lever.
    3. NOTE: Refer to Fastener Notice .
  3. Install the park brake lever mounting nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

    4. Fig 3: View Of Park Brake Release Lever Handle & Bolt
    GM376009Courtesy of GENERAL MOTORS CORP.
  4. Connect the park brake release cable to the park brake lever.
    5. Fig 4: Park Brake Warning Lamp Switch Electrical Connector
    GM606395Courtesy of GENERAL MOTORS CORP.
  5. Connect the park brake warning lamp connector.
  6. Install the MID-Bussed Electrical Center bracket.
  7. Install the left side hinge pillar panel. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side .
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  9. Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling .
