Body Hinge Pillar Trim Panel Replacement - Left Side

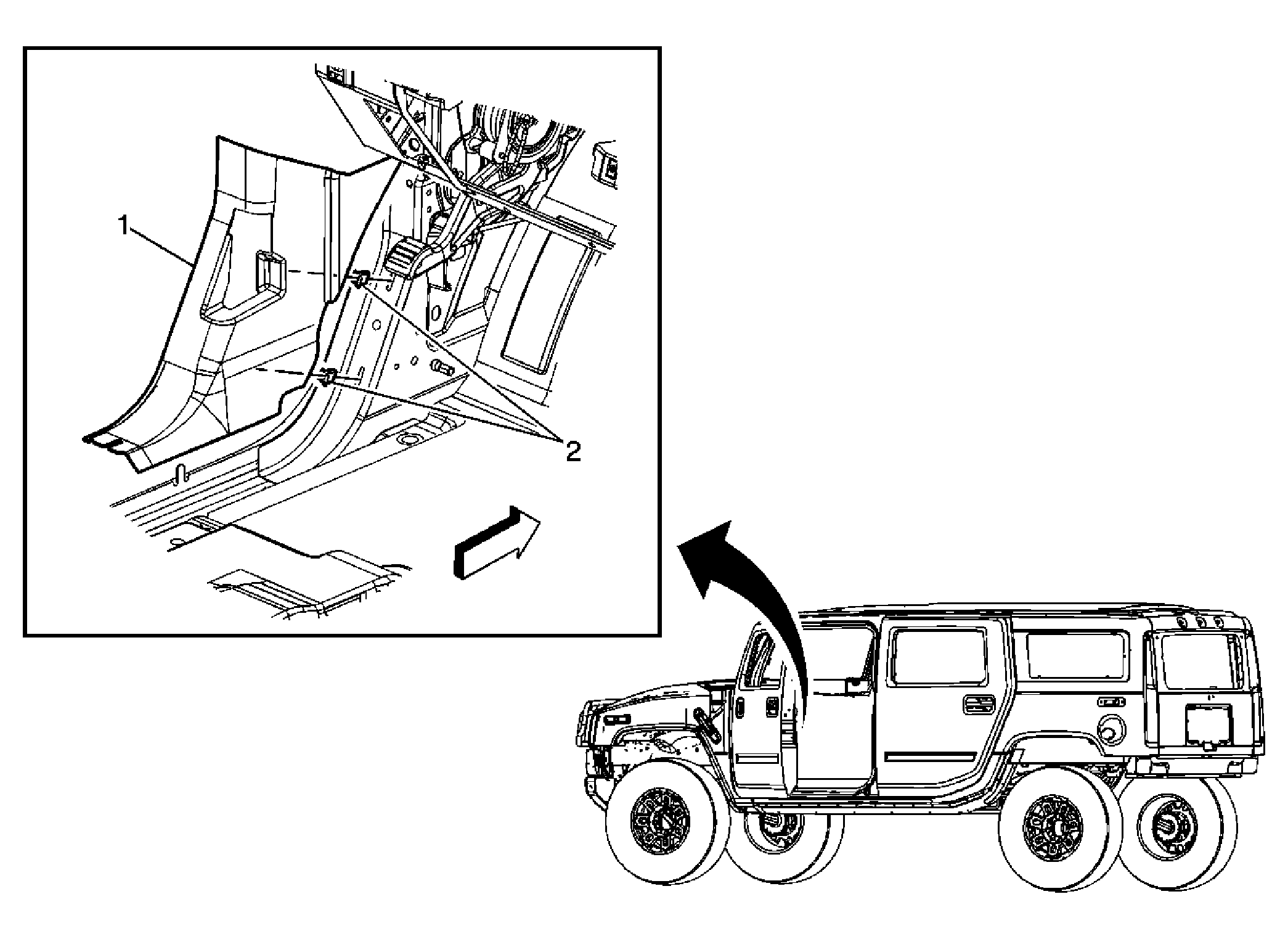

Fig 1: Body Hinge Pillar Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door sill trim plate. Refer to Front Side Door Sill Plate Replacement .
1	Body Hinge Pillar Trim Panel Assembly Procedure Grasp the trim panel and pull it outward disengaging the clips securing it to the body. Feed the hood release handle through the opening in the trim panel.
2	Retainer Clips (Qty: 3)

Callout

Component Name

Preliminary Procedure:
Remove the front side door sill trim plate. Refer to Front Side Door Sill Plate Replacement .

Body Hinge Pillar Trim Panel Assembly

Procedure

Grasp the trim panel and pull it outward disengaging the clips securing it to the body.
Feed the hood release handle through the opening in the trim panel.

Retainer Clips (Qty: 3)
