Hydraulic Brake Booster Accumulator Replacement

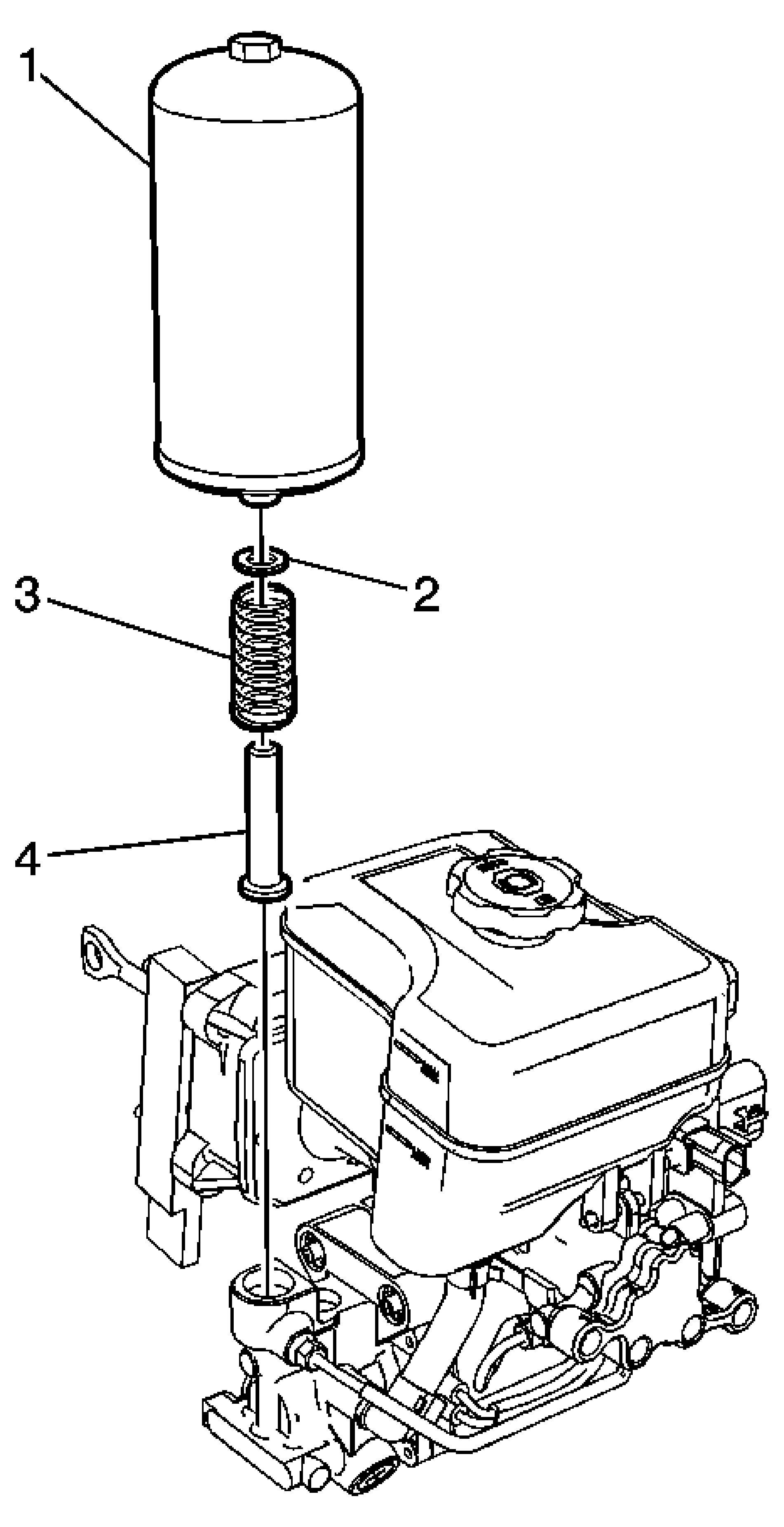

| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to Brake Fluid Irritant Caution
.
NOTE:
Refer to Brake Fluid Effects on Paint and Electrical Components Notice
. Preliminary Procedure: Remove the brake master cylinder assembly with power brake booster and chassis control module. Refer to Brake Master Cylinder with Power Brake Booster and Chassis Control Module Replacement
. |
|
| 1 | Power Brake Booster Accumulator
NOTE:
Refer to Fastener Notice
. Procedure: Discard the accumulator properly by cutting the accumulator in half and draining the brake fluid. Refer to Power Brake Booster Pump Fluid Accumulator Disposal . Tighten: 57 N.m (42 lb ft) |
| 2 | Power Brake Booster Pump Fluid Accumulator Seal Tip: Lubricate with Delco®, GM P/N 12377967 (Canadian P/N 992667) or equivalent DOT-3 brake fluid from a clean, sealed brake fluid container. |
| 3 | Power Brake Booster Pump Fluid Accumulator Fitting Spring |
| 4 | Power Brake Booster Pump Fluid Accumulator Fitting |
