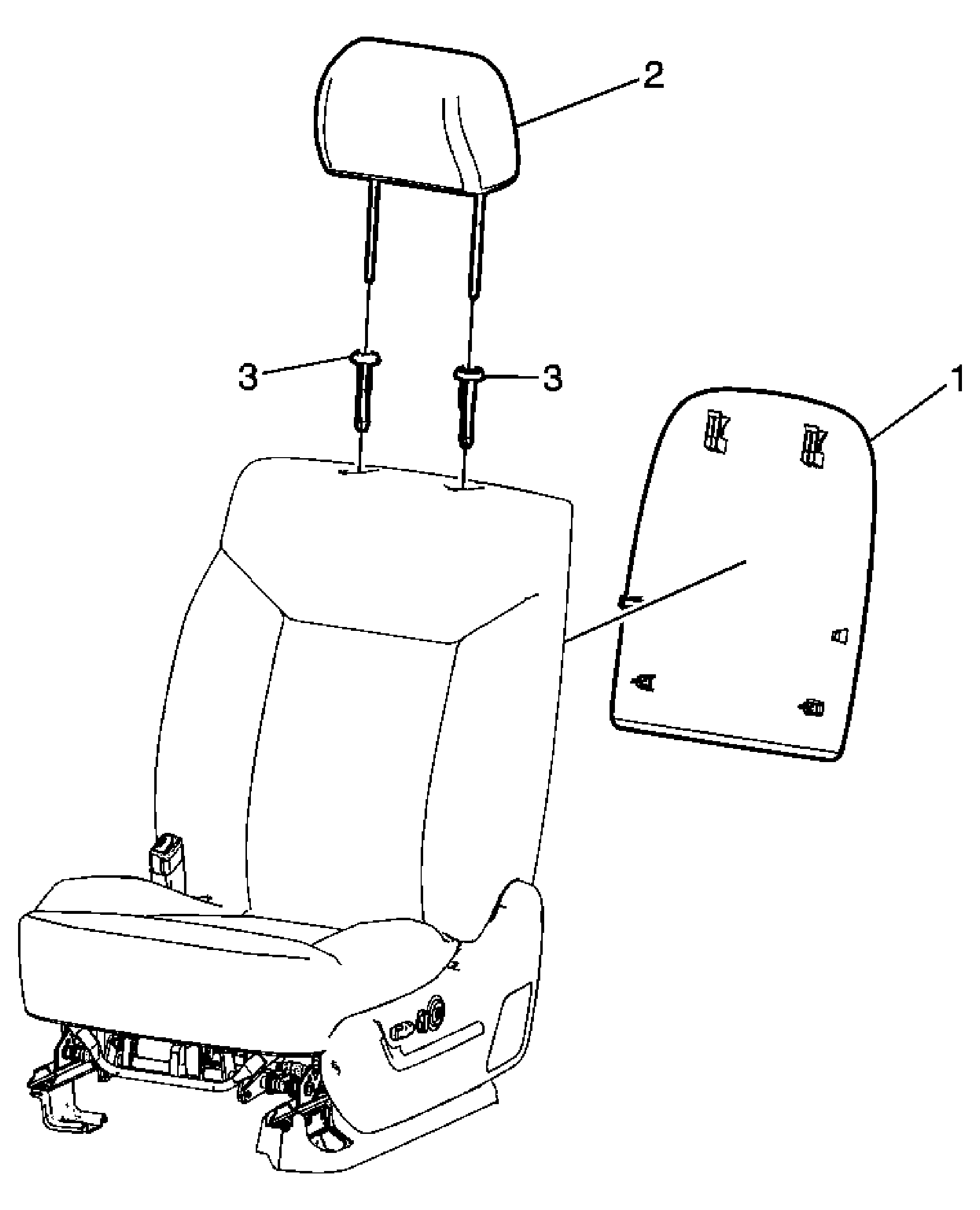

| 1 |
Front Seat Back Cushion Finish Panel
Refer to Driver Seat and Passenger Seat Back Cushion Finish Panel Replacement . |
| 2 |
Front Seat Head Restraint Assembly Procedure
- Depress the button on the head restraint guide to raise the head restraint to the full up position.
- Insert a small diameter tool into the hole on the inboard side of the other head restraint guide and pull upward to remove.
|
| 3 |
Front Seat Head Restraint Guide (Qty: 2) Procedure
- Squeeze the bottom of the guide together and push up to remove from the seat back.
- Note the location and orientation of each guide for installation purposes.
|
