Front Seat Cushion Frame Replacement

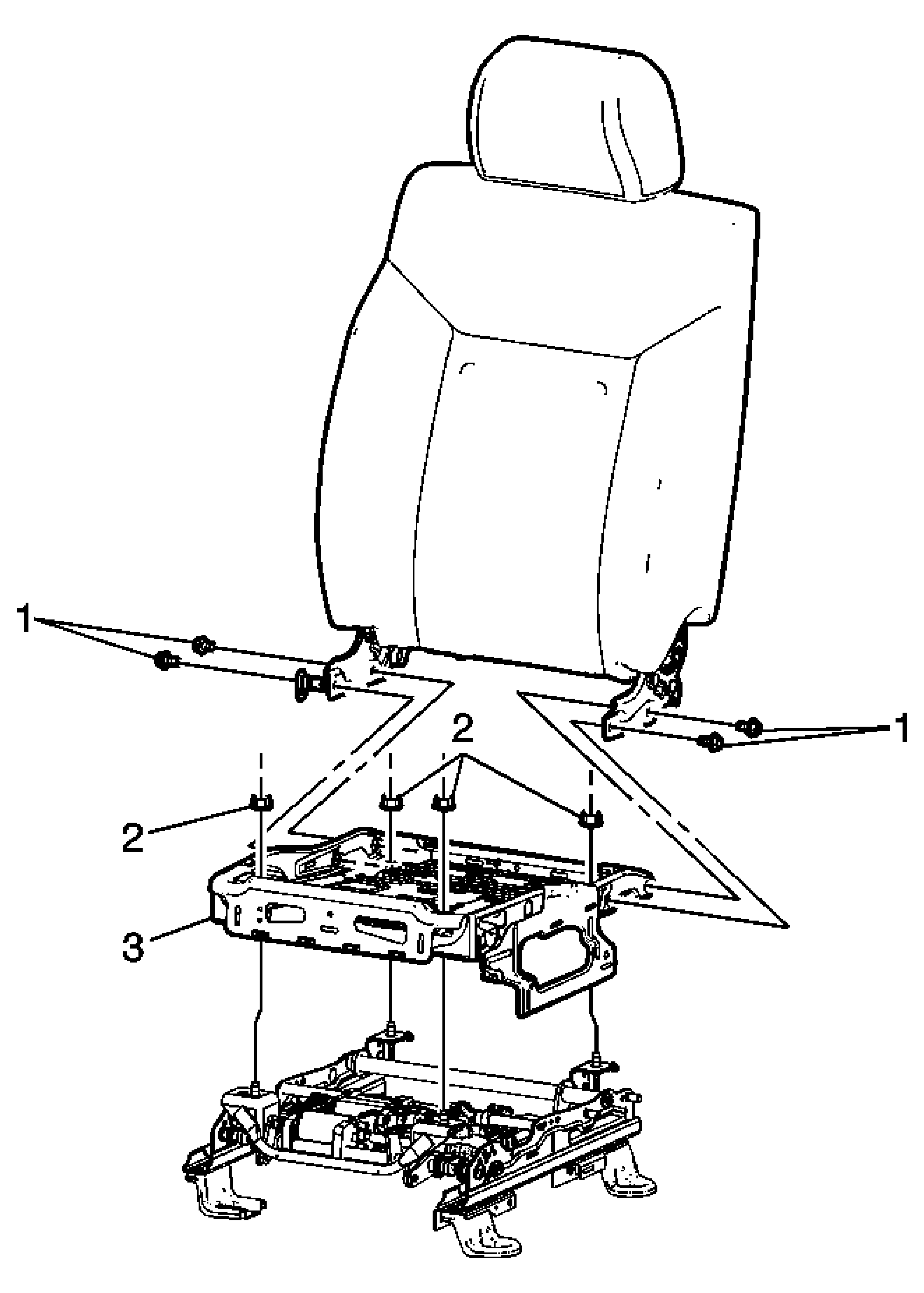

Fig 1: Front Seat Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .
1	Front Seat Back Frame Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Seat Cushion Frame Nut (Qty: 4) Tighten: 9 N.m (80 lb in)
3	Front Seat Cushion Frame Procedure: Disconnect any wiring harness and note routing for installation.
