Driver Seat and Passenger Seat Adjuster and Recliner Switch Replacement

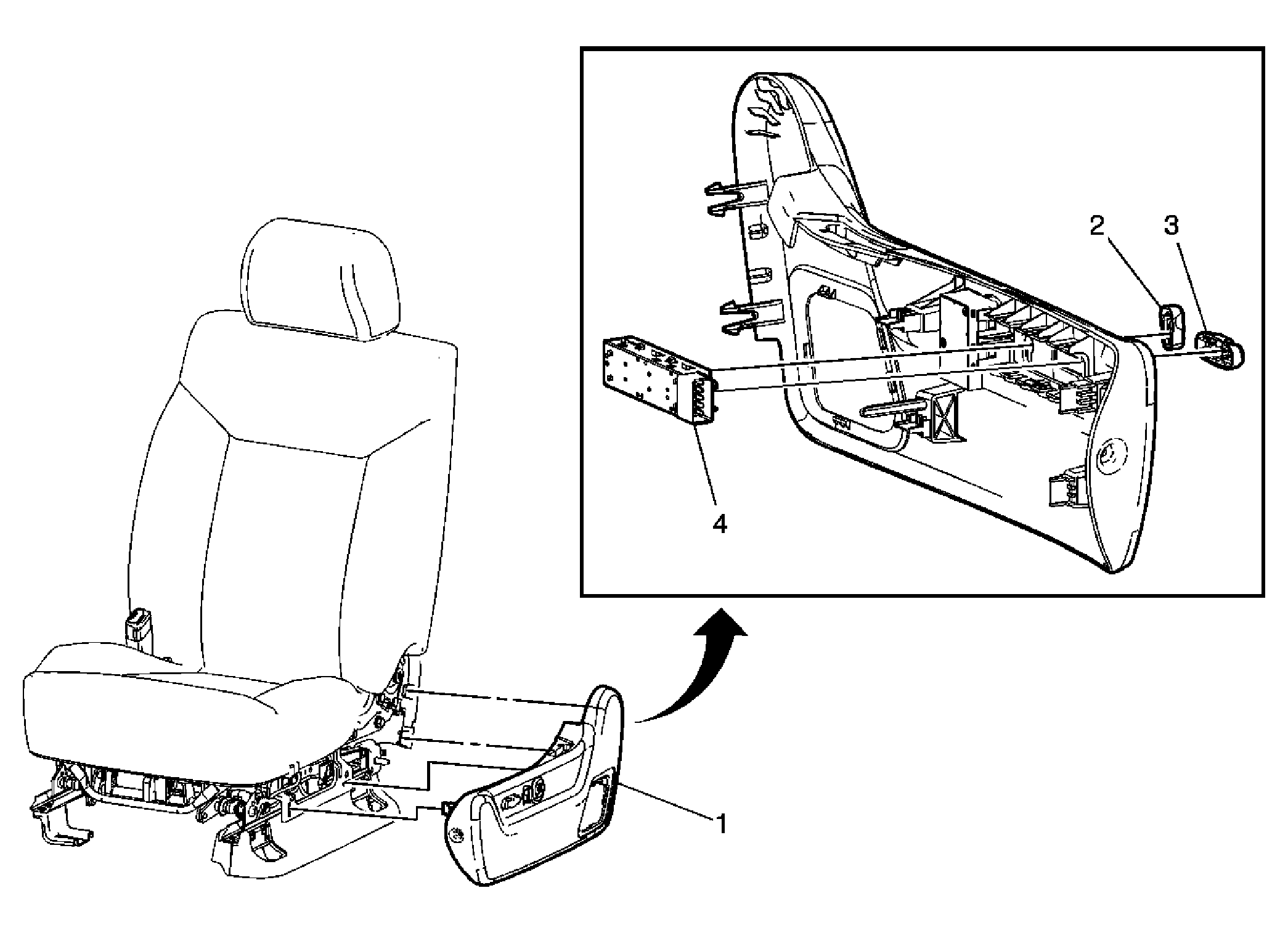

Fig 1: Driver Seat and Passenger Seat Adjuster and Recliner Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Adjuster Outer Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement .
2	Front Seat Recliner Switch Knob Tip:  Pull off to remove.
3	Front Seat Adjuster Switch Knob Tip:  Pull off to remove.
4	Front Seat Adjuster and Recliner Switch Tip:  Use a small flat bladed tool to disengage the switch from the outer finish cover.
