Removal Procedure

  1. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

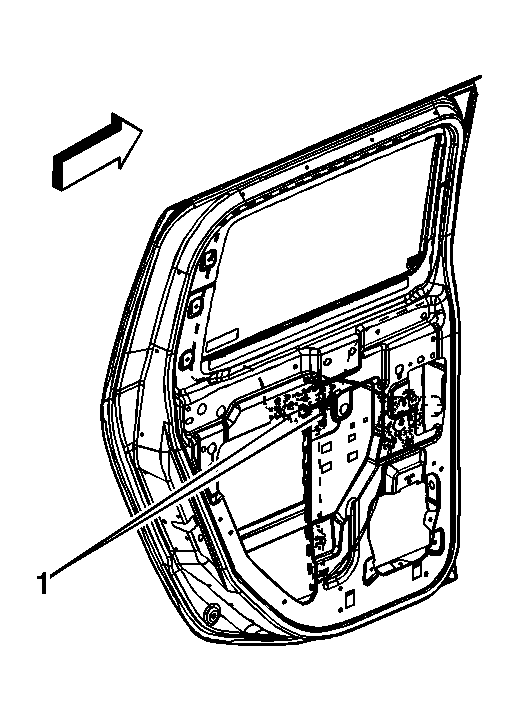

    3. Fig 1: Rear Door Window
    GM838833Courtesy of GENERAL MOTORS CORP.
  3. Remove the run channel. Refer to Rear Side Door Window Channel Replacement .
  4. Remove the stabilizer. Refer to Rear Side Door Window Stabilizer Replacement .
  5. Remove the outer sealing strip. Refer to Rear Door Window Belt Outer Sealing Strip Replacement .
  6. Loosen the clamps (1) securing the glass to the window module.
  7. Remove the window through the opening of the window frame.
