Rear Side Door Trim Panel Replacement

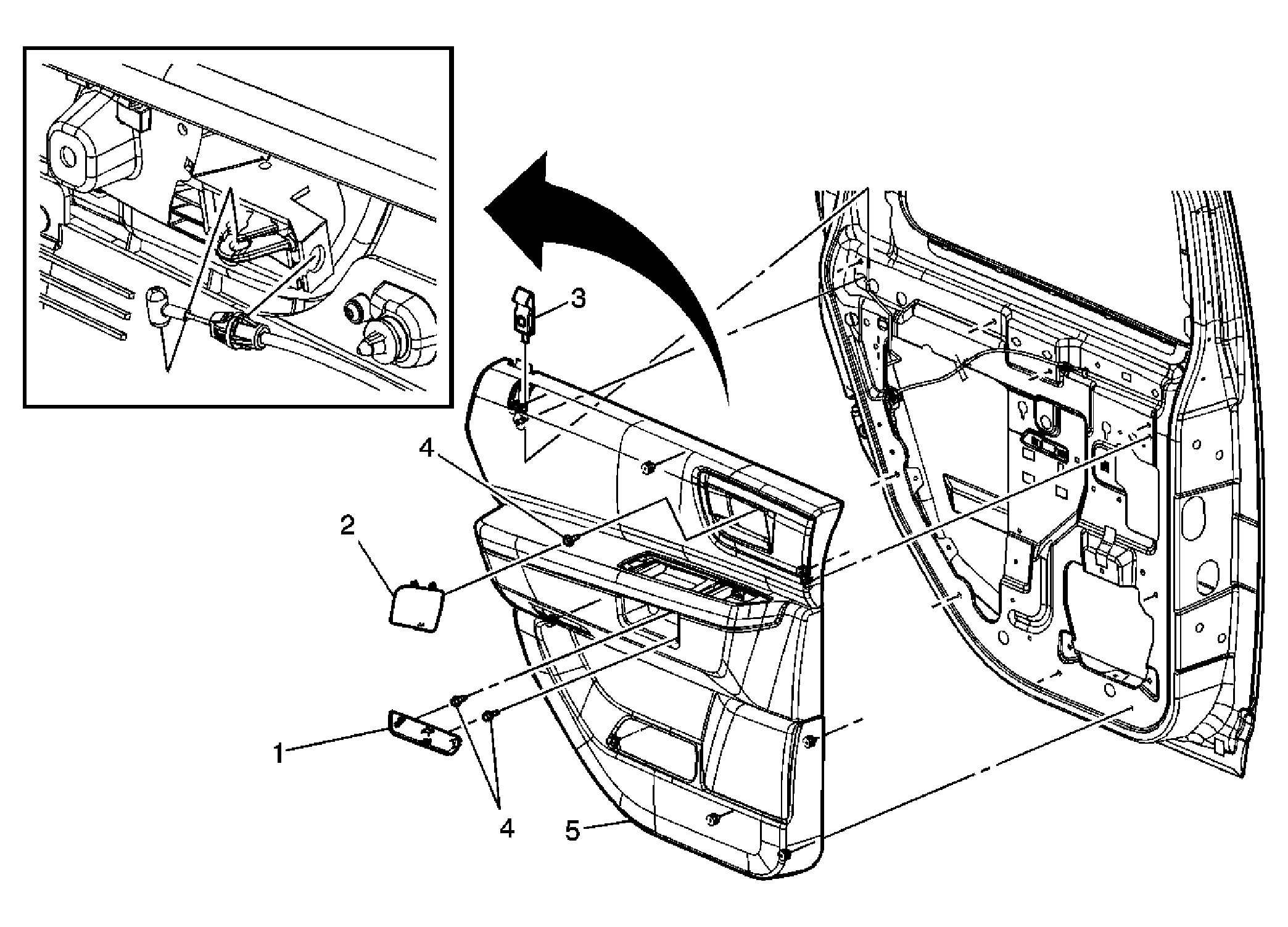

Fig 1: Rear Side Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Inside Handle Bezel Finish Cover
2	Rear Side Door Pull Handle Cover
3	Rear Side Door Locking Rod Knob Assembly Procedure Ensure the locking rod is in the unlocked position. Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward. When re-installing, push the knob down until the detent tab touches the locking rod opening cover. Push the detent tab into the lock knob to locking rod.
4	Rear Side Door Trim Panel Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
5	Rear Side Door Trim Panel Assembly Procedure Use a door trim pad removal tool to aid in the removal of the trim panel. Disengage the door lock cable. Disconnect the electrical connectors.
