Removal Procedure

    Fig 1: Seat Belt Anchor
    GM1486642Courtesy of GENERAL MOTORS CORP.
  1. Fold the rear seats forward.
  2. Remove the rear folding seat back covers. Refer to Rear Folding Seat Back Cover Replacement .
  3. Remove the midgate hinge cover trim (1). Refer to Midgate Hinge Finish Cover Replacement (SUT) .

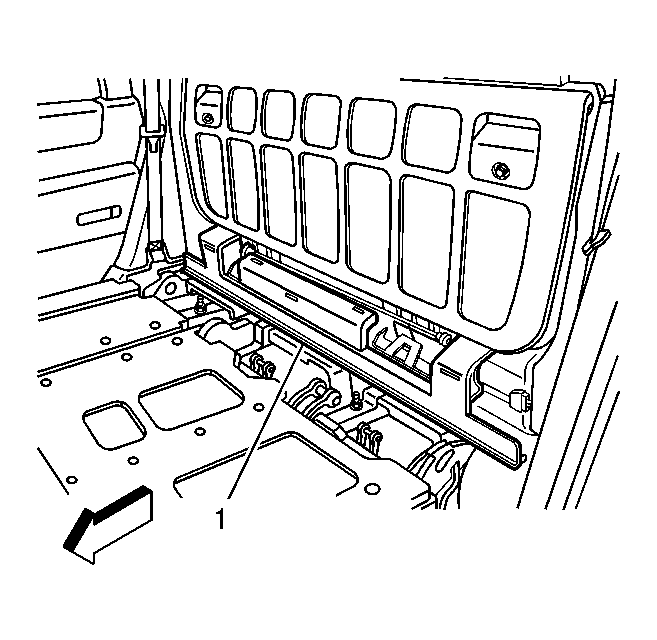

    4. Fig 2: Endgate Center Molding
    GM1486635Courtesy of GENERAL MOTORS CORP.
  4. Pull the endgate center molding (1) towards the front of the vehicle to release the clips.
  5. Remove the endgate center pillar molding.
