Midgate Hinge Finish Cover Replacement (SUT)

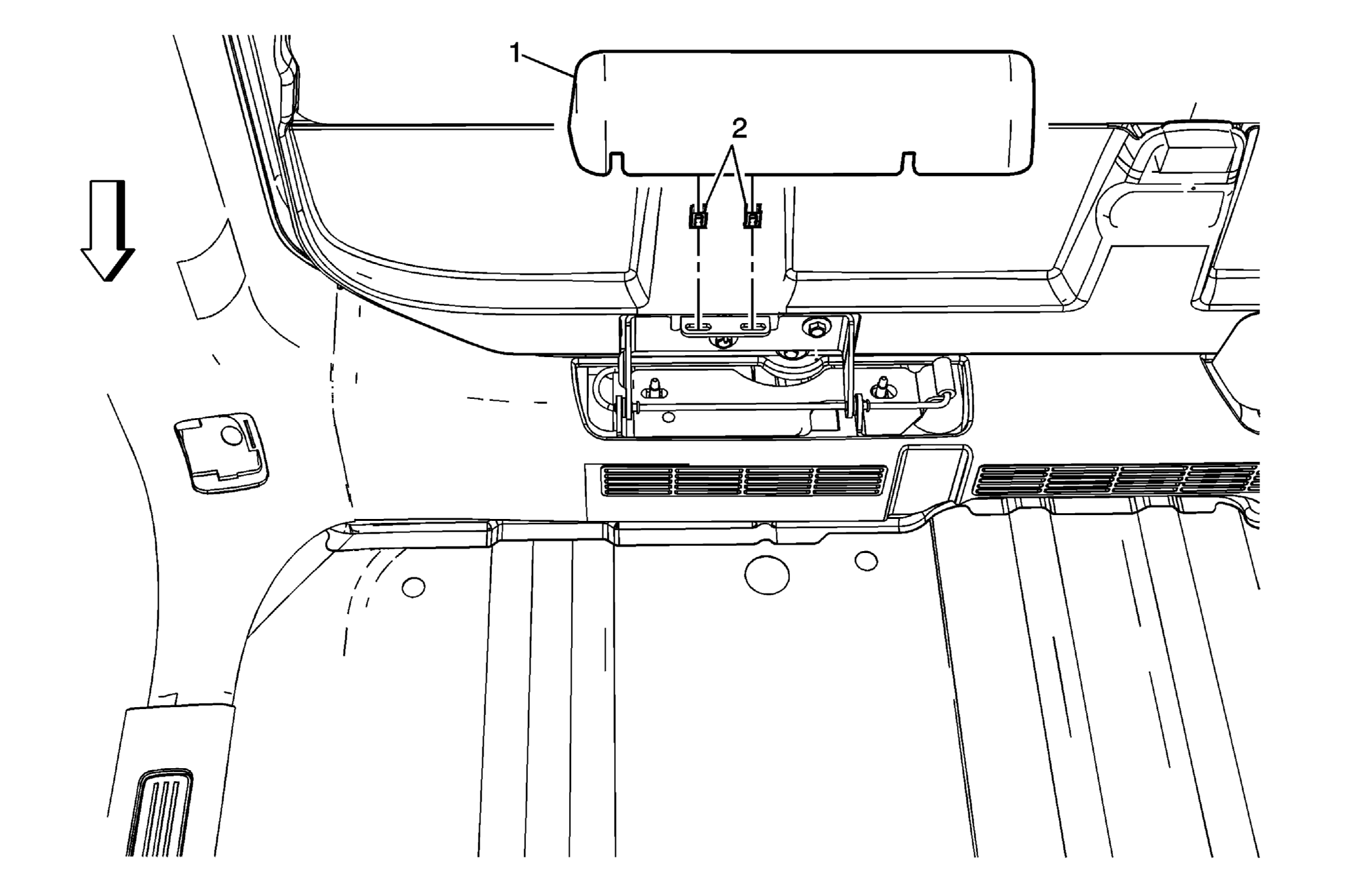

Fig 1: Midgate Hinge Finish Cover (SUT)
GM1709267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Midgate Hinge Finish Cover
Tip:
  1. Tilt rear seat backs forward in order to gain access to hinge cover.
  2. Pull upward on hinge cover to disengage clips.
2 Midgate Hinge Finish Cover Clip (Qty: 2)
