Body Hinge Pillar Trim Panel Replacement - Right Side

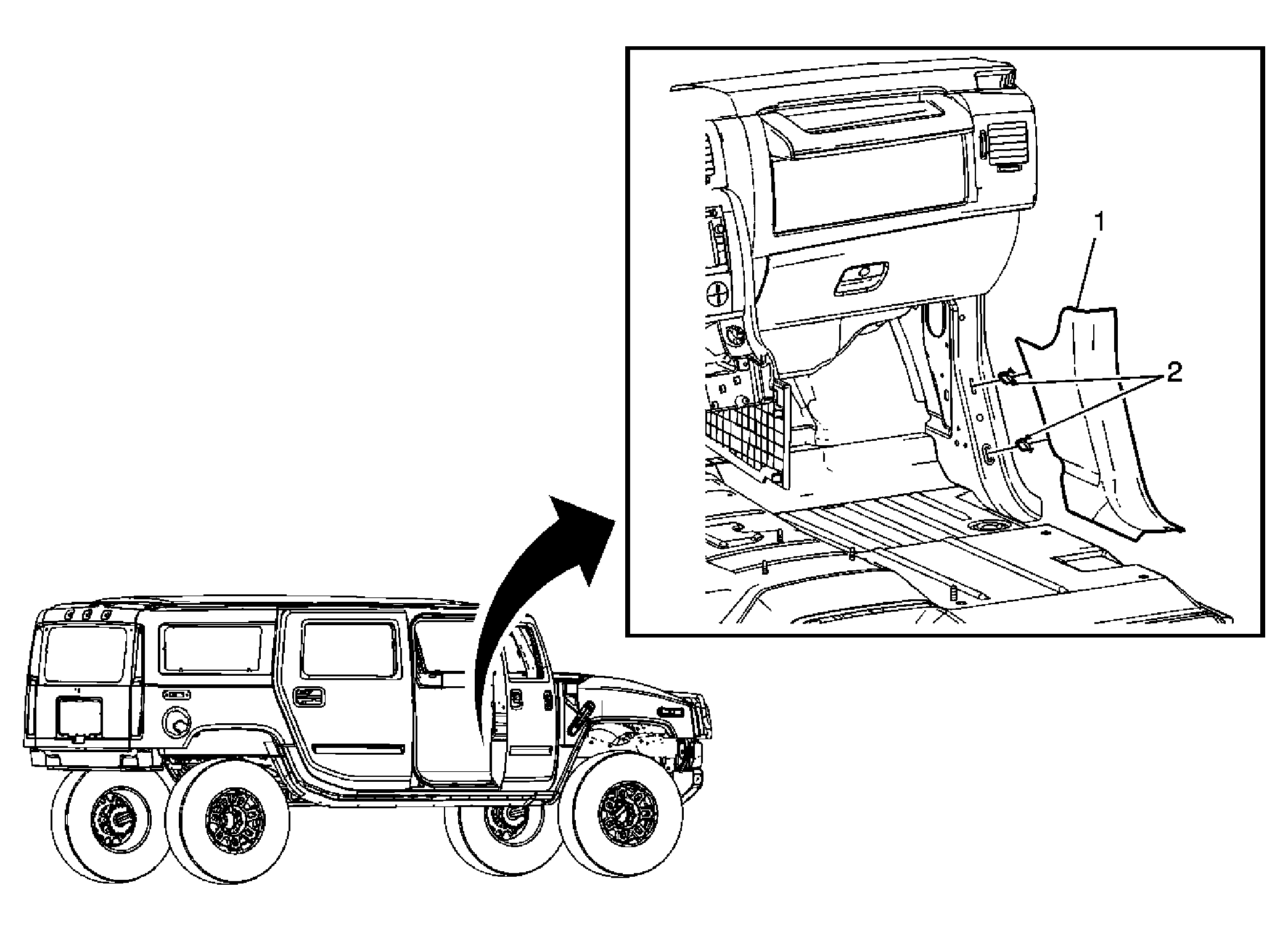

Fig 1: Body Hinge Pillar Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front side door sill trim plate. Refer to Front Side Door Sill Plate Replacement .
1	Body Hinge Pillar Trim Panel Assembly Procedure:  Grasp the trim panel and pull it outward disengaging the clips securing it to the body.
2	Retainer Clips (Qty: 3)
