Headlamp Switch Replacement

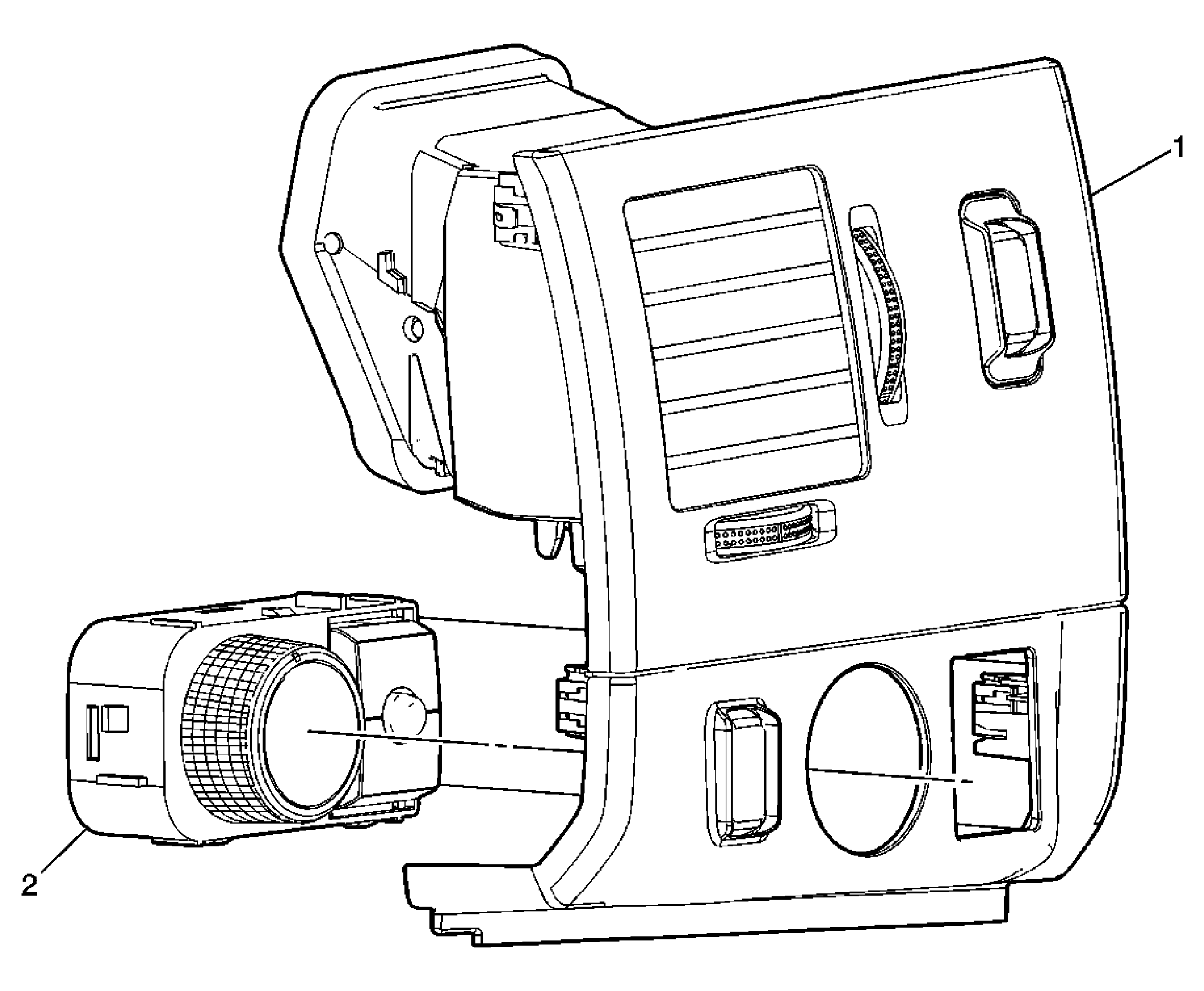

Fig 1: Headlamp Switch
GM1913326Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Left Air Outlet Bezel Assembly
Refer to Instrument Panel Outer Air Outlet Bezel Replacement - Left Side .
2 Headlamp Switch Assembly
Procedure:
Unsnap the switch assembly from the left air outlet bezel.
