Ambient Light Sensor Replacement

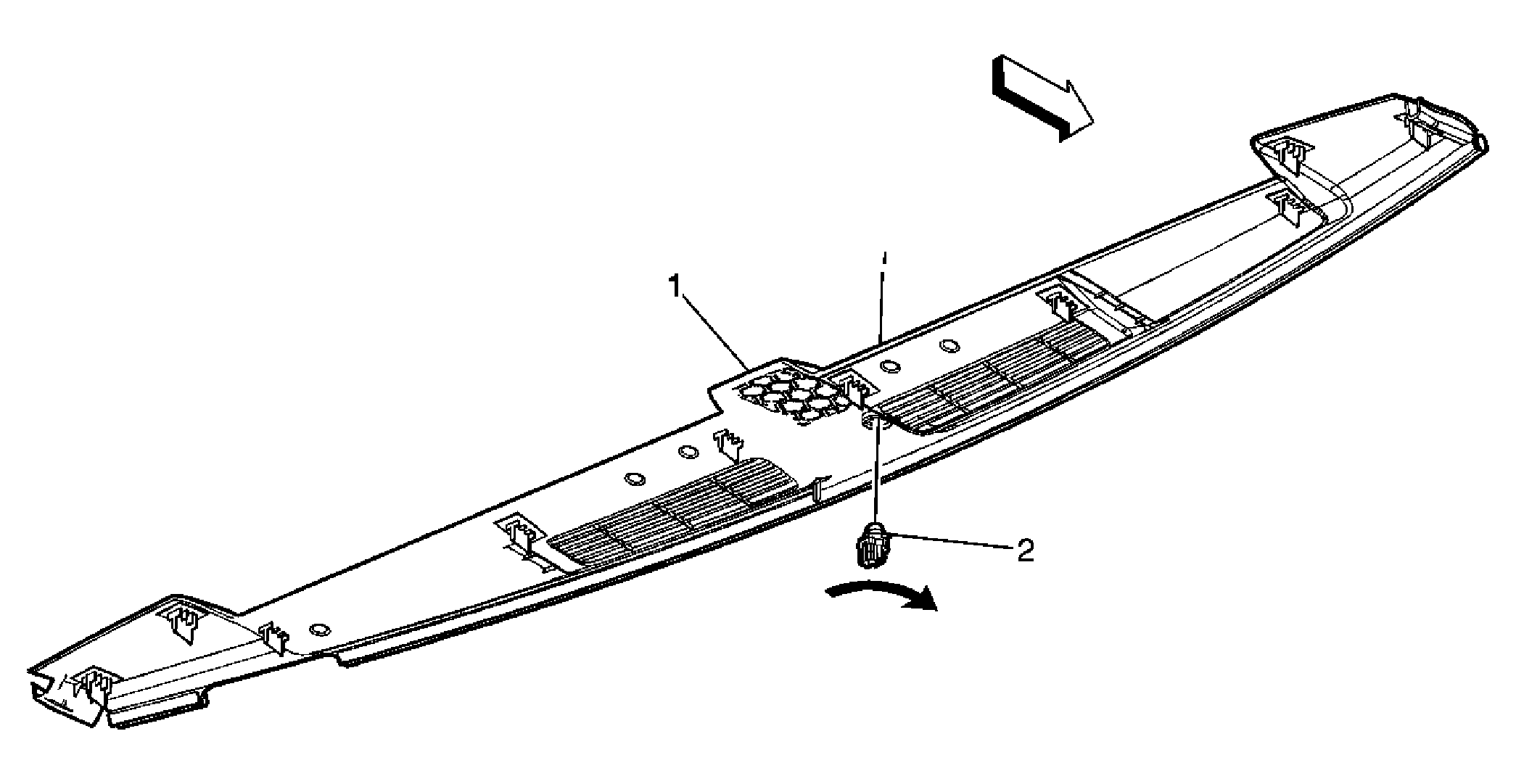

Fig 1: Ambient Light Sensor
GM1946629Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
2 Headlamp Automatic Control Ambient Light Sensor Assembly

Procedure

  1. Twist and pull down to remove.
  2. Disconnect electrical connector.
