Rear Seat Audio Control Replacement

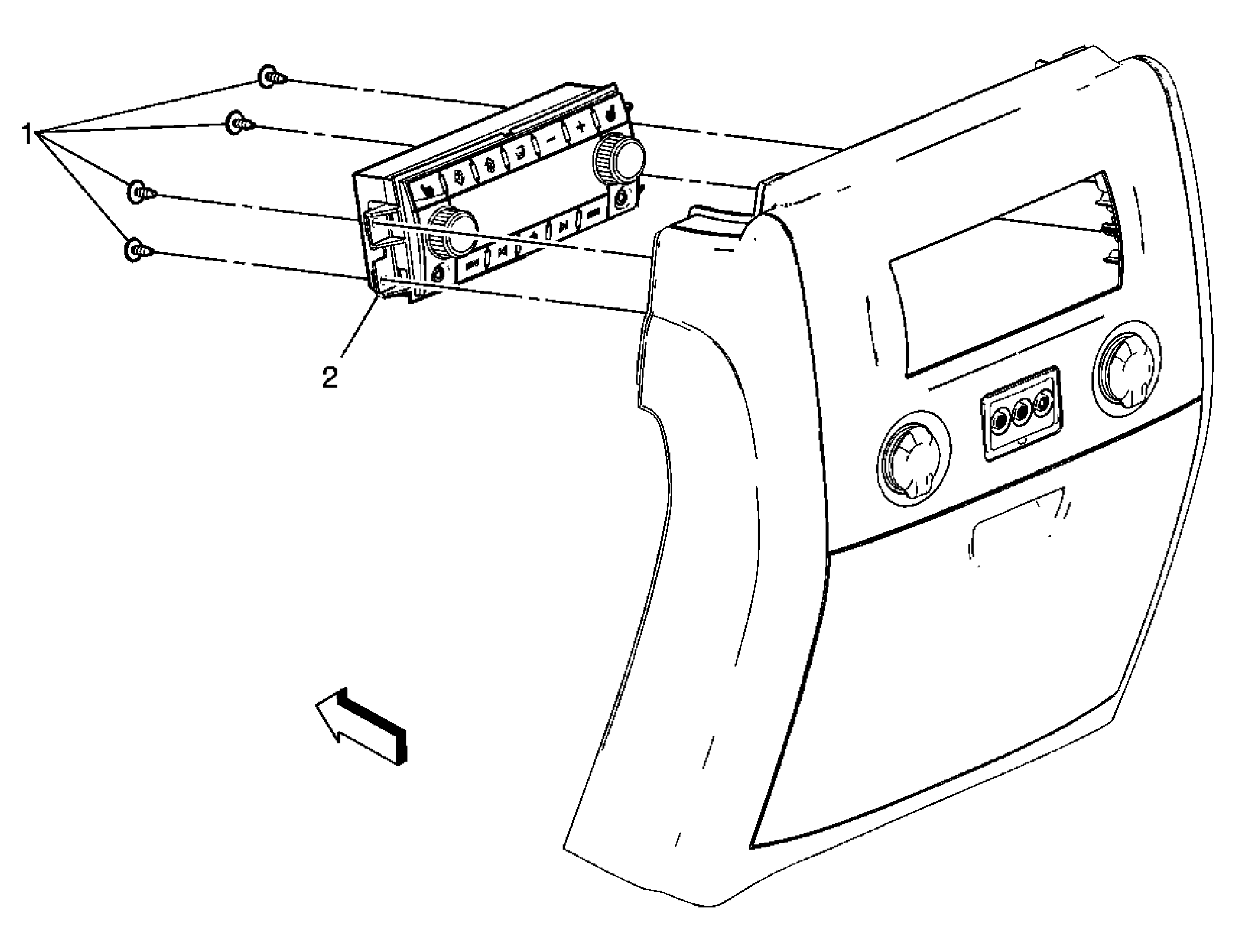

Fig 1: Rear Seat Audio Control

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement .
1	AM/FM Stereo, Tape Player and Compact Disc Player Radio Control Screw (Qty: 4) NOTE: Refer to Fastener Notice . Procedure: Tighten the fasteners equally to ensure the control assembly seats evenly. Tighten: 1.5 N.m (13 lb in)
2	AM/FM Stereo, Tape Player and Compact Disc Player Radio Control Procedure: Disconnect the electrical connectors.
